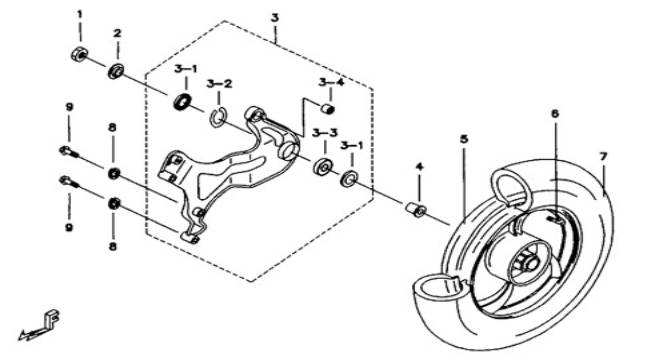

| 34 | REAR WHEEL | BK9-U | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | GA558NT03 | NUT, SELFLOCK M16X14 | 1 | ||||
| 02 | 412921 | COLLAR | 1 | ||||
| 03 | 412919 | REAR FORK ASSY. | 1 | ||||
| 03-1 | 412917 | OIL SEAL | 2 | ||||
| 03-2 | R01001 | RETAINER RING, C TYPE | 1 | ||||
| 03-3 | 412918 | BEARING | 1 | ||||
| 03-4 | 400038 | BUSH COMP. | 1 | ||||
| 04 | 412916 | COLLAR | 1 | ||||
| 05 | 413402 | RIM COMP., REAR WHEEL MT 2.15-14 | 1 | ||||
| 06 | GF5299901 | INLET COMP., AIR | 1 | ||||
| 07 | 413410-S | TIRE 110/80-14 | 1 | ||||
| 08 | GA556WS04 | SPRING WASHER 8.2X3.2X2t | 2 | ||||
| 09 | S20809 | BOLT, FLANGE 8X42 | 2 | ||||
