| 30 |

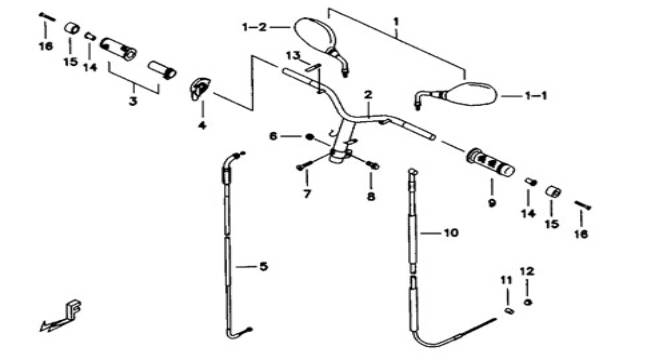

HANDLE BAR |
|
BK9-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
410151 |
MIRROR ASSY., REAR VIEW |
1 |
|
|
|
| 01-1 |
410152 |
MIRROR, REAR VIEW, LH. |
1 |
|
|
|
| 01-2 |
410153 |
MIRROR, REAR VIEW, RH. |
1 |
|
|
|
| 02 |
413027 |
HANDLE BAR ASSY. |
1 |
|
|
|
| 03 |
401828 |
GRIP ASSY., RH. |
1 |
|
|
|
| 04 |
413073 |
THROTTLE HOUSING |
1 |
|
|
|
| 05 |
402101 |
CABLE, THROTTLE |
1 |
|
|
|
| 06 |
GA551NT01 |
NUT, SELFLOCK M10X1.0 |
1 |
|
|
|
| 07 |
GA557SC02 |
SCREW, FLAT HEAD M8X35 |
1 |
|
|
|
| 08 |
GA557SC01 |
BOLT, FLANGE M10X43 |
1 |
|
|
|
| 09 |
401827 |
GRIP, LH. |
1 |
|
|
|
| 10 |
413035 |
CABLE, REAR BRAKE |
1 |
|
|
|
| 11 |
GI530PN01 |
PIN, STOP∮12X22 |
1 |
|
|
|
| 12 |
GI530NT01 |
NUT, ADJUSTING M6X16 |
1 |
|
|
|
| 13 |
GA501SR01 |
CLAMP |
1 |
|
|
|
| 14 |
401801 |
COLLAR |
2 |
|
|
|
| 15 |
401802 |
END, GRIP |
2 |
|
|
|
| 16 |
S35601 |
SCREW, FLAT HEAD |
2 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
