| 27 |

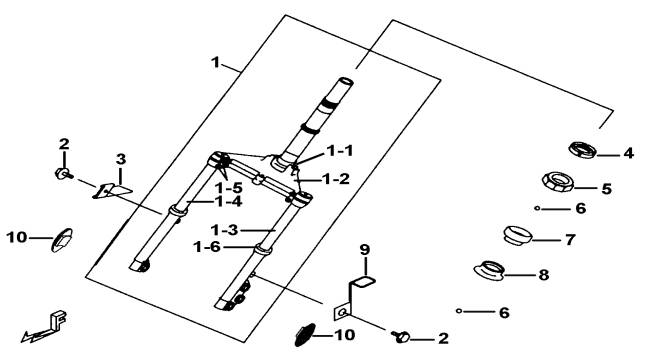

FRONT FORK |
|
BK9-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
401869 |
FORK COMP., FRONT |
1 |
|
|
|
| 01-1 |
GF527PS01 |
RACE, STEERING, OVTER, LOWER |
1 |
|
|
|
| 01-2 |
401970 |
CENTREL BAR ASSY. |
1 |
|
|
|
| 01-3 |
401971 |
FORK COMP., FRONT LH. |
1 |
|
|
|
| 01-4 |
401972 |
FORK COMP., FRONT RH. |
1 |
|
|
|
| 01-5 |
S20004 |
BOLT,FLANGE M10X30 |
4 |
|
|
|
| 01-6 |
401876 |
SEAL, OIL |
2 |
|
|
|
| 02 |
GA556SC01 |
BOLT, FLANGE M6X1.0X12L |
2 |
|
|
|
| 03 |
GI527PS02 |
BRKT, CABLE, SPEEDOMETER |
1 |
|
|
|
| 04 |
GA556NT01 |
NUT, SLOTTED |
1 |
|
|
|
| 05 |
GA556PS03 |
RACE, STEERING, INNER, UPPER |
1 |
|
|
|
| 06 |
GA556FE01 |
BALL |
55 |
|
|
|
| 07 |
GA556PS04 |
RACE, STEERING, INNER |
1 |
|
|
|
| 08 |
GF527PS02 |
RACE, STEERING INNER, LOWER |
1 |
|
|
|
| 09 |
BH1279901 |
BRKT, BRAKE HOSE |
1 |
|
|
|
| 10 |
412715 |
REFLECTOR ASSY., SIDE |
2 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
