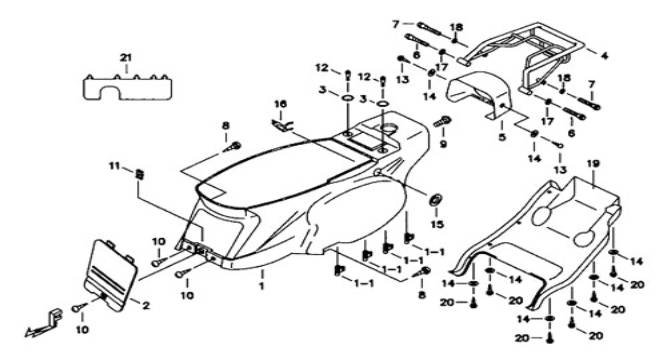

24	FRAME COVER			BK9-U
ITEM NO.	PART NO.	DESCRIPTION	Q'TY	AMEND	NOTE
01	BH124PL01A	COVER, SIDE	1
01-1	452035	BRKT	8
02	BH124PL04	COVER, SMALL	1
03	BH124FE01	BRKT, SEAT	2
04	BH1249901	CARRIER, TAIL	1
05	BH124PL03	COVER, TAIL LAMP	1
06	S70613	BOLT, HEX. HEAD M6X50	2
07	S70804	BOLT,HEX HEAD M8X50	2
08	S57501	SCREW,OVAL HEAD, FLANGE M5X14	2
09	S07501	BOLT,HEX HEAD	2
10	S51501	SCREW,TAPPING M5X16	5
11	N31501	NUT, SPRING M5	3
12	S24617	BOLT, FLANGE 6X14	2
13	S50501	SCREW, OVAL HEAD M5X12L	2
14	GA552WS05	WASHER	10
15	401658	BUSH	1
16	401657	REED	1
17	GA555WS02	WASHER	2
18	W99810	WASHER	2
19	458010B	BOTTOM PLATE, FUEL TANK	1
20	GA552SC11	SCREW, TAPPING M4X16	8
21	458008	SPLASH APRON	1
