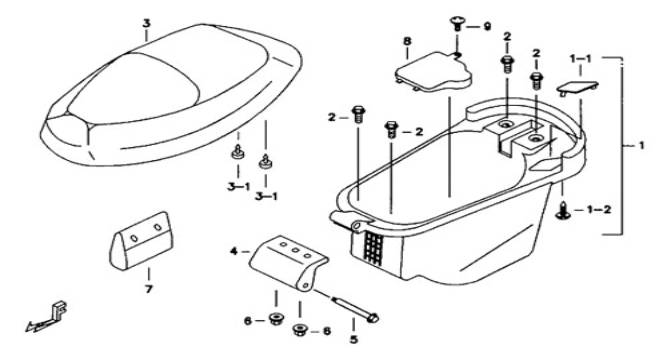

| 23 | SEAT | BK9-U | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 452038 | HELMET CASE ASSY. | 1 | ||||
| 01-1 | 452024 | ORNAMENT, HELMET CASE | 1 | ||||
| 01-2 | S50401 | SCREW TAPPING M4X12 | 1 | ||||
| 02 | S25602 | BOLT M6X16L | 4 | ||||
| 03 | 452029 | SEAT SET | 1 | ||||
| 03-1 | 401904 | DAMPER, RUBBER | 2 | ||||
| 04 | BH123FE01 | BRKT, SEAT | 1 | ||||
| 05 | S47601 | SCREW, RECESSED PAN HEAD M6X68 | 1 | ||||
| 06 | GA554NT04 | NUT, FLANGE M6xP1.0 | 2 | ||||
| 07 | 421515 | PACKAGE, TOOL | 1 | ||||
| 08 | 452014 | CAP, HELMET CASE (BLACK) | 1 | ||||
| 09 | S45603 | SCREW, OVAL HEAD M6x10 | 1 | ||||
