| 22 |

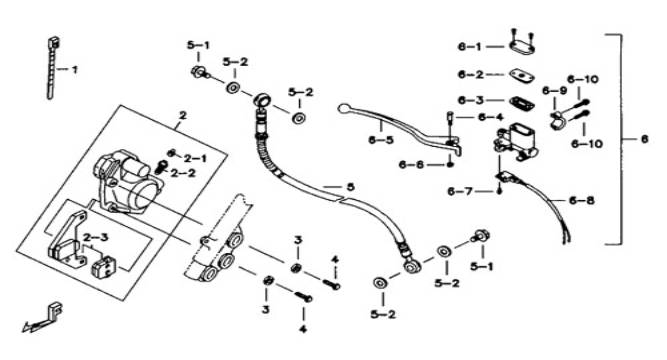

CALIPER, MASTER CYLINDER |
|
BK9-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
GA510SR01 |
CLAMP |
1 |
|
|
|
| 02 |
401851Y |
CALIPER |
1 |
|
|
|
| 02-1 |
GA559RB01 |
CAP, GUARD |
1 |
|
|
|
| 02-2 |
GA559SC01 |
BOLT, FLANGE |
1 |
|
|
|
| 02-3 |
GF5359902 |
PAD ASSY. |
1 |
|
|
|
| 03 |
W99805 |
WASHER |
2 |
|
|
|
| 04 |
GA558SC03 |
BOLT, HEX. HEAD |
2 |
|
|
|
| 05 |
401622Y |
HOSE ASSY., FRONT BRAKE |
1 |
|
|
|
| 05-1 |
S21001 |
OIL BOLT M10X1.25X22L |
2 |
|
|
|
| 05-2 |
GA559WS04 |
WASHER, 10.2X15X1.2t |
4 |
|
|
|
| 06 |
401656Y |
MASTER CYLINDER |
1 |
|
|
|
| 06-1 |
402178 |
COVER, MASTER CYLINDER |
1 |
|
|
|
| 06-10 |
S70610 |
SCREW, SOCKET HEAD M6x25 |
2 |
|
|
|
| 06-2 |
402179 |
DIAPHRAGM CAP |
1 |
|
|
|
| 06-3 |
402180 |
DIAPHRAGM |
1 |
|
|
|
| 06-4 |
S04602 |
BOLT, HEX. HEAD |
1 |
|
|
|
| 06-5 |
402181 |
LEVER, HANDLE BAR, RH. |
1 |
|
|
|
| 06-6 |
N10602 |
NUT |
1 |
|
|
|
| 06-7 |
S43401 |
BOLT |
1 |
|
|
|
| 06-8 |
402182 |
LIMITEED SWITCH ASSY. |
1 |
|
|
|
| 06-9 |
402183 |
MASTER CYLINDER HOLDER |
1 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
