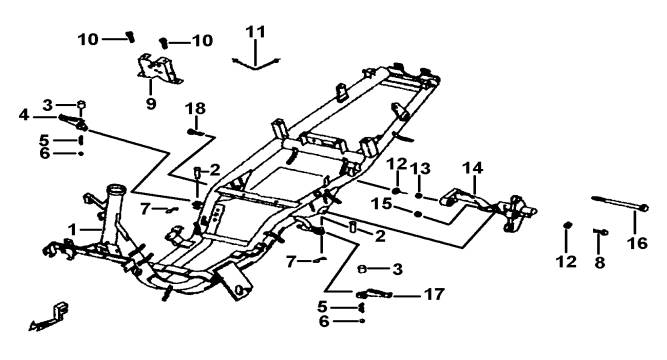

| 19 |
FRAME |
|
|
BK9-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
411930 |
FRAME |
1 |
|
|
|
| 02 |
GA551PN02 |
PIN 6X34 |
2 |
|
|
|
| 03 |
GF519FE01 |
COLLAR, PIN 6X8X20 |
2 |
|
|
|
| 04 |
GF519AL06 |
FOOTREST ASSY., PILLION, RH. |
1 |
|
|
|
| 05 |
GF519SP01 |
SPRING, COMPRESSION 6X12.5 |
2 |
|
|
|
| 06 |
GF519FE04 |
BALL ∮6.35 |
2 |
|
|
|
| 07 |
GA551PN01 |
COTTER PIN 1.5X30 |
2 |
|
|
|
| 08 |
S99001 |
BOLT |
1 |
|
|
|
| 09 |
BH1199904 |
LOCK SET, SEAT |
1 |
|
|
|
| 10 |
GA556SC01 |
BOLT, FLANGE M6X1.0X12L |
2 |
|
|
|
| 11 |
BH1199905 |
CABLE, LOCK SET, SEAT |
1 |
|
|
|
| 12 |
GA556WS06 |
WASHER, SPRING
10.2X3.7X2.5t |
2 |
|
|
|
| 13 |
401921 |
SPACER |
1 |
|
|
|
| 14 |
402139 |
ROCKER ARM ASSY., HANGER |
1 |
|
|
|
| 15 |
GA551NT01 |
NUT, SELFLOCK M10X1.0 |
1 |
|
|
|
| 16 |
S20003 |
BOLT |
1 |
|
|
|
| 17 |
GF519AL05 |
FOOTREST ASSY., PILLON, LH. |
1 |
|
|
|
| 18 |
S99003 |
BOLT, FLANGE |
1 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
