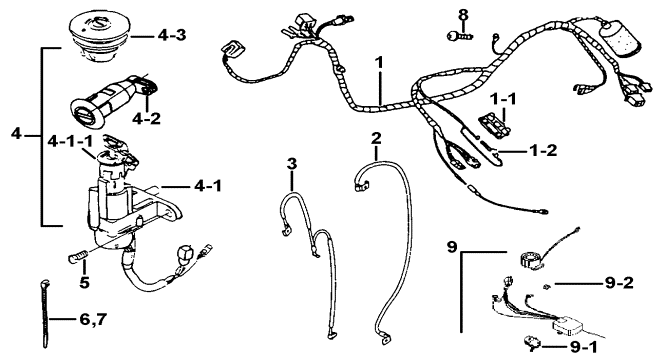

| 15 | WIRING HARNESS AND LOCK SET | BK9-U | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 441012 | WIRING HARNESS | 1 | ||||
| 01-1 | GF5159906 | CASE SET, FUSE | 1 | ||||
| 01-2 | GF5159907 | FUSE 7A | 1 | ||||
| 02 | 400532 | HARNESS, STARTING | 1 | ||||
| 03 | 400533 | HARNESS, EARTH | 1 | ||||
| 04 | 440749Y | LOCK ASSY. | 1 | ||||
| 04-1 | 440774 | LOCK SET, STEERING | 1 | ||||
| 04-1-1 | BH115PL01 | CAP, INDICATOR | 1 | ||||
| 04-2 | 440744-S | LOCK SET, SEAT | 1 | ||||
| 04-3 | BH1159904-S | LOCK SET, FUEL TANK | 1 | ||||
| 05 | GA510SC03 | SCREW, HEX. HEAD M6X16 | 2 | ||||
| 06 | GA510SR02 | CLAMP L200 | 2 | ||||
| 07 | 400535 | CLAMP L300 | 2 | ||||
| 08 | GA556SC01 | BOLT, FLANGE M6X1.0X12L | 2 | ||||
| 09 | 441007Y | ALARM ASSY. | 1 | ||||
| 09-1 | 441013Y | REMOTE CONTROL | 1 | ||||
| 09-2 | 924425 | FUSE, 10A | 1 | ||||
