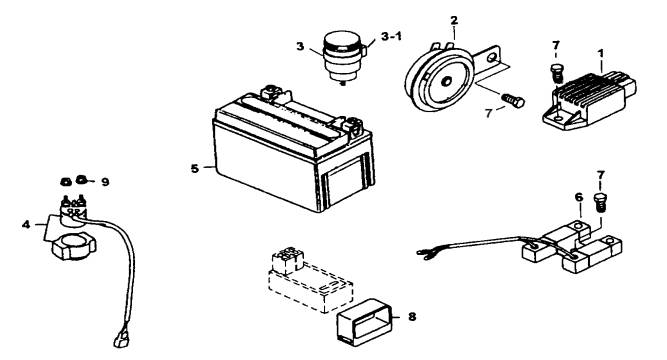

| 14 | BATTERY, HORN, RELAY, RECTIFIER | BK9-U | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 400507 | RECTIFIER ASSY. | 1 | ||||
| 02 | 440809 | HORN ASSY. | 1 | ||||
| 03 | 440800A | RELAY, TURN SIGNAL | 1 | ||||
| 03-1 | 440745 | BUSH, RUBBER | 1 | ||||
| 04 | 400508 | RELAY, STARTING | 1 | ||||
| 05 | 440805 | BATTERY, ENGLISH LABEL 12V 9AH | 1 | ||||
| 06 | 440965 | RESISTOR | 1 | ||||
| 07 | GA510SC03 | SCREW, HEX. HEAD M6X16 | 3 | ||||
| 08 | 400519 | BUSH, RUBBER | 1 | ||||
| 09 | N10601 | NUT, FLANGE 6mm | 2 | ||||
