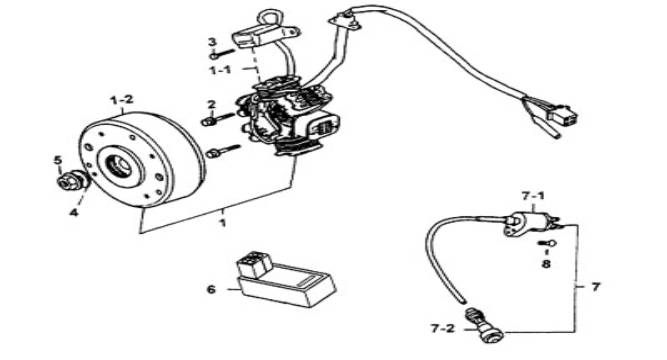

| 13 | FLYWHEEL MAGNETO AND IGNITION COIL | BK9-U | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 400502 | FLYWHEEL MAGNET ASSY. | 1 | ||||
| 01-1 | 400503 | STATOR ASSY. | 1 | ||||
| 01-2 | 400504 | ROTOR ASSY. | 1 | ||||
| 02 | S24616 | BOLT, FLANGE | 2 | ||||
| 03 | S24501 | SCREW, SOCKET HEADM5x12 | 2 | ||||
| 04 | W99205 | WASHER | 1 | ||||
| 05 | N10203 | NUT | 1 | ||||
| 06 | 400505 | C.D.I | 1 | ||||
| 07 | 400506 | COIL ASSY., IGNITION | 1 | ||||
| 07-1 | 400511 | COIL SET, IGNITION | 1 | ||||
| 07-2 | 400512 | CAP SET, SPARK PLUG | 1 | ||||
| 08 | GA510SC10 | SCREW, HEX. HEAD M5X20 | 1 | ||||
