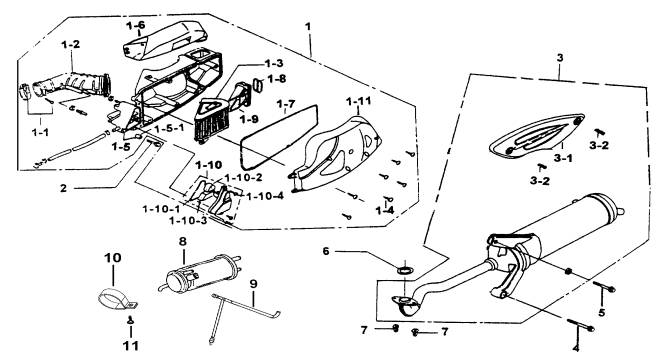

| 9 | AIR CLEANER, MUFFLER | BK9-U | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 420066 | AIR CLEANER ASSY. | 1 | ||||
| 01-1 | 400191 | CLAMP | 1 | ||||
| 01-10 | 400303 | COVER ASSY. OIL CATCH | 1 | ||||
| 01-11 | 420069 | COVER AIR CLEANER | 1 | ||||
| 01-2 | 420049 | INLET TUBE | 1 | ||||
| 01-3 | 400302 | ELEMENT COMP. | 1 | ||||
| 01-4 | S45501 | STUD 5X20 | 7 | ||||
| 01-5 | 400196 | CASE AIR CLENER | 1 | ||||
| 01-5-1 | 400197 | BUSH | 2 | ||||
| 01-6 | 420067 | DUCT AIR CLEANER CASE | 1 | ||||
| 01-7 | 400199 | SEAL AIR CLEANER COVER | 1 | ||||
| 01-8 | 400200 | SPRING IN DUCT | 1 | ||||
| 01-9 | 400301 | DUCT AIR CLEANER IN | 1 | ||||
| 02 | S24614 | BOLT, FLANGE | 2 | ||||
| 03 | 426155 | BODY COMP., MUFFLER (CATALYST) | 1 | ||||
| 03-1 | 426157 | PROTECTOR COMP. MUFFLER | 1 | ||||
| 03-2 | 400319 | SCREW SET | 2 | ||||
| 04 | S20809 | BOLT, FLANGE 8X42 | 1 | ||||
| 05 | S20810 | BOLT, FLANGE 8X38 | 1 | ||||
| 06 | 400317 | WASHER, MUFFLER | 1 | ||||
| 07 | N12802 | NUT, OVAL HEAD 6mm | 2 | ||||
| 08 | 426190 | CARBON CANISTER | 1 | ||||
| 09 | 426191 | THREE WAY ASSY. | 1 | ||||
| 10 | 527010 | CLIP | 1 | ||||
| 11 | S99614 | BOLT | 1 | ||||
| 1-10-1 | 400305 | SEAL OIL CATCH | 1 | ||||
| 1-10-2 | 400306 | FILTER BREATHER | 1 | ||||
| 1-10-3 | 400307 | FILTER OIL CATCH | 1 | ||||
| 1-10-4 | S50402 | SCREW,TAPPING M4X10 | 2 | ||||
