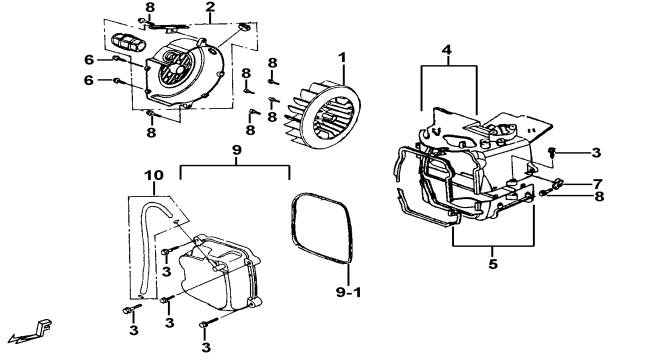

| 8 | COOLING FAN, SHORUD, CYLIDER HEAD COVER | BK9-U | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 400188 | COOLING FAN | 1 | ||||
| 02 | 400167 | COVER SET, FAN | 1 | ||||
| 03 | S24613 | BOLT, FLANGE | 5 | ||||
| 04 | 400171 | SHROUD SET A | 1 | ||||
| 05 | 400175 | SHROUD SET B | 1 | ||||
| 06 | S14502 | BOLT,TAPPING | 4 | ||||
| 07 | 400180 | CLAMP, DRAIN TUBE | 1 | ||||
| 08 | S24605 | BOLT,FLANGE | 7 | ||||
| 09 | 400437 | COVER COMP., CYLINDER HEAD | 1 | ||||
| 09-1 | 400183 | WASHER, CYLINDER HEAD | 1 | ||||
| 10 | 427005 | TUBE ASSY., BREATHER | 1 | ||||
