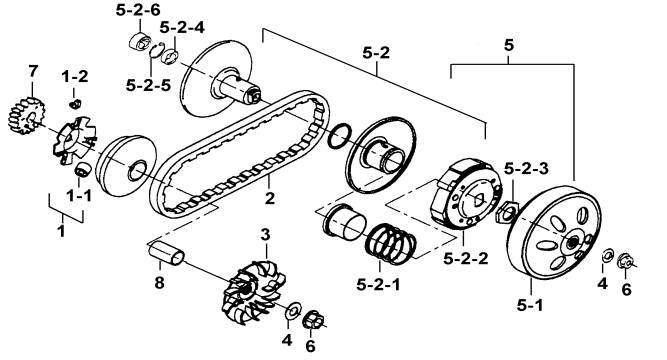

CONTINUOUS VARIABLE TRANSMISSION |
|
BK9-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
490173 |
PULLEY COMP., DRIVE |
1 |
|
|
|
| 01-1 |
490252 |
ROLLER COMP.,
MOVABLE DRIVE FACE |
1 |
|
|
|
| 01-2 |
490256 |
GUIDE, MOVABLE
DRIVEFACE PLATE |
3 |
|
|
|
| 02 |
490100 |
V-BELT, DRIVE |
1 |
|
|
|
| 03 |
490172 |
FACE, FIXED DRIVE |
1 |
|
|
|
| 04 |
W99204 |
WASHER 12.2X29X2.3t |
2 |
|
|
|
| 05 |
490810A |
PULLEY COMP., DRIVEN |
1 |
|
|
|
| 05-1 |
490177 |
HOUSING COMP., CLUTCH |
1 |
|
|
|
| 05-2 |
490809 |
PULLEY ASSY., DRIVEN |
1 |
|
|
|
| 05-2-1 |
490284 |
SPRING, MOVABLE
DRIVEN FACE 53X143 |
1 |
|
|
|
| 05-2-2 |
490808 |
CLUTCH ASSY., SHOE |
1 |
|
|
|
| 05-2-3 |
RT406NT01 |
NUT, HEX. M28X1.0 |
1 |
|
|
|
| 05-2-4 |
428801 |
BEARING |
1 |
|
|
|
| 05-2-5 |
CTVG227001 |
CIR-CLIP |
1 |
|
|
|
| 05-2-6 |
82518R |
NEEDLE BEARING |
1 |
|
|
|
| 06 |
N10202 |
NUT, FLANGE 12X8 |
2 |
|
|
|
| 07 |
400333 |
GEAR, DRIVEN, STARTING 20T |
1 |
|
|
|
| 08 |
490174 |
SPACER |
1 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
