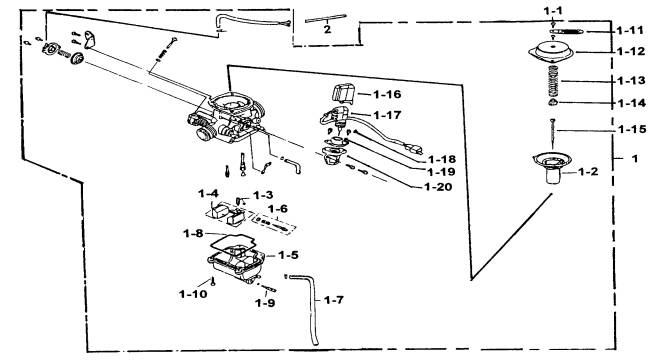

CARBURETOR |
|
BK9-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
424049 |
CARBURETOR ASSY. |
1 |
|
|
|
| 01-1 |
S30401 |
SCREW, OVAL HEAD M4X8 |
4 |
|
|
|
| 01-10 |
S30402 |
SCREW,OVAL HEAD M4X14 |
4 |
|
|
|
| 01-11 |
424054 |
BINDER |
1 |
|
|
|
| 01-12 |
424055 |
TOP COMP. |
1 |
|
|
|
| 01-13 |
424056 |
SPRING |
1 |
|
|
|
| 01-14 |
424057 |
VALVE PLATE SET |
1 |
|
|
|
| 01-15 |
424058 |
NEEDLE SET. JET |
1 |
|
|
|
| 01-16 |
424059 |
CAP. HOLDER |
1 |
|
|
|
| 01-17 |
424060 |
VALVE SET. STARTER |
1 |
|
|
|
| 01-18 |
S30401 |
SCREW, OVAL HEAD M4X8 |
2 |
|
|
|
| 01-19 |
424061 |
GASET, STARTER VALVE |
1 |
|
|
|
| 01-2 |
400422 |
PISTON COMP., VACUUM |
1 |
|
|
|
| 01-20 |
424062 |
STARTER VALVE SEAT |
1 |
|
|
|
| 01-3 |
400096 |
VALVE SET, FLOAT |
1 |
|
|
|
| 01-4 |
400098 |
FLOAT SET |
1 |
|
|
|
| 01-5 |
400099 |
CHAMBER SET, FLOAT |
1 |
|
|
|
| 01-6 |
400100 |
SCREW, AIR ADJUSTER |
1 |
|
|
|
| 01-7 |
400112 |
TUBE |
1 |
|
|
|
| 01-8 |
400404 |
GASKET SET |
1 |
|
|
|
| 01-9 |
400405 |
SCREW, OVAL HEAD |
1 |
|
|
|
| 02 |
400429 |
HOSE, NEGATIVE PRESSURE |
1 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
