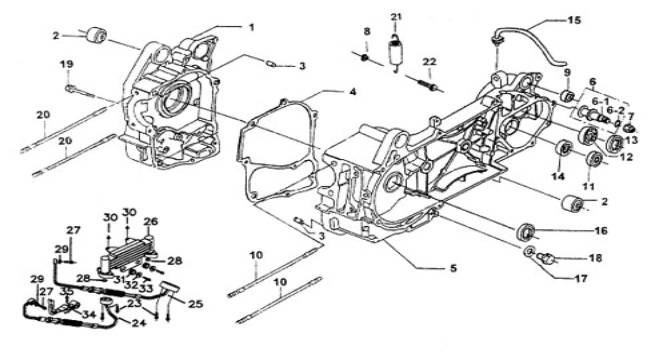

2 CRANK   CASE   BK9-U




















ITEM NO. PART NO. DESCRIPTION Q'TY AMEND NOTE
01 422033 CRANK CASE COMP., RH. 1
02 400026 BUSH COMP. 2
03 P40802 PIN, DOWEL  8X14 2
04 400031 GASKET, CRANKCASE 1
05 422034 CRANKCASE COMP., LH. 1
06 422027 PIN, BRAKE  SHOE  ASSY. 1
06-1 422008 PIN, BRAKE  SHOE 1
06-2 400036 O  RING 1
07 N25801 NUT, SELFLOCK 8mm 1
08 GA504NT01 NUT, FLANGE M6 2
09 400038 BUSH COMP. 1
10 S95802 STUB  8x195.5 2
11 400039 BEARING  CSB301JR2 1
12 400040 BEARING  6004uu 1
13 400041 OIL  SEAL  27X42X7 1
14 400042 BEARING  6002 1
15 400043 TUBE  SET, BREATHER 1
16 400155 OIL  SEAL  19.8X30X5 1
17 W99201 WASHER  12mm 1
18 S20201 BOLT,OUTLET 12mm 1
19 S24602 BOLT, FLANGE 6X50 1
20 S95801 STUB  8x187.5 2
21 422028 SPRING, REAR BRAKE 1
22 S24614 BOLT, FLANGE 1
23 S24605 BOLT,FLANGE 4
24 427038 HOSE ASSY., INTLET. OIL COOLER 1
25 427036 HOSE ASSY., OUTLET. OIL COOLER 1
26 427010 OIL COOLER 1
27 427011 BOLT, HOSE B 2
28 427012 O RING 2
29 W99210 WASHER 4
30 GA554NT04 NUT, FLANGE  M6xP1.0 2
31 GA554RB05 CUSHION, REAR 2
32 427013 SPACER 2
33 GA551SC09 BOLT, FLANGE M6X20 2
34 427014 CLAMP, HOSE 1
35 S24603 BOLT, FLANGE 1
