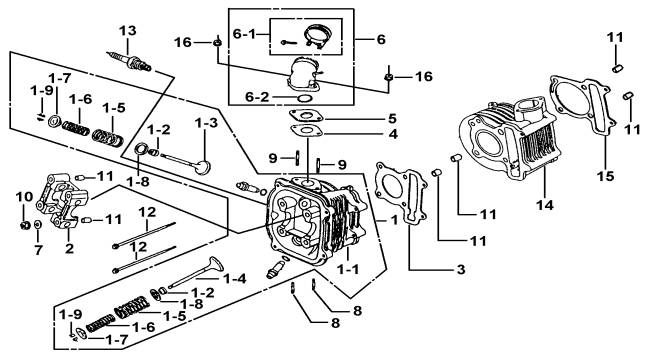

| 1 | CYLINDER HEAD, CYLINDER SET., VALVE | BK9-U | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 421027 | CYLINDER HEAD ASSY. | 1 | ||||
| 01-1 | 421024 | HEAD, CYLINDER | 1 | ||||
| 01-2 | 400066 | SEAL, VALVE STEM | 2 | ||||
| 01-3 | 421025 | VALVE, INLET | 1 | ||||
| 01-4 | 421029 | VALVE, OUTLET | 1 | ||||
| 01-5 | 421030 | SPRING, VALVE, OUTER | 2 | ||||
| 01-6 | 421031 | SPRING, VALVE, INNER | 2 | ||||
| 01-7 | 400091 | RETAINER, VALVE | 2 | ||||
| 01-8 | 400092 | SEAT, VALVE SPRING | 2 | ||||
| 01-9 | 400093 | COTTER, VALVE | 4 | ||||
| 02 | 400008 | HOLDER, CAMSHAFT | 1 | ||||
| 03 | 421022 | GASKET, CYLINDERHEAD | 1 | ||||
| 04 | 400010 | GASKET, INSULATOR | 1 | ||||
| 05 | 400011 | INSULATOR, CARBURETTOR | 1 | ||||
| 06 | 400012 | PIPE ASSY., INTAKE | 1 | ||||
| 06-1 | 400017 | CLAMP | 1 | ||||
| 06-2 | 400019 | O RING | 1 | ||||
| 07 | W99806 | WASHER 8.5X16X2 | 4 | ||||
| 08 | S96801 | STUD 6X18 | 2 | ||||
| 09 | S95603 | STUD 6X50 | 2 | ||||
| 10 | N10801 | NUT, FLANGE 8mm | 4 | ||||
| 11 | P40001 | PIN, DOWEL 10X16 | 6 | ||||
| 12 | S24601 | BOLT, FLANGE 6X100 | 2 | ||||
| 13 | 400020 | SPARK PLUG (CR7HSA) | 1 | ||||
| 14 | 421026 | CYLINDER SET | 1 | ||||
| 15 | 421023 | GASKET, CYLINDER | 1 | ||||
| 16 | N10601 | NUT, FLANGE 6mm | 2 | ||||
