34

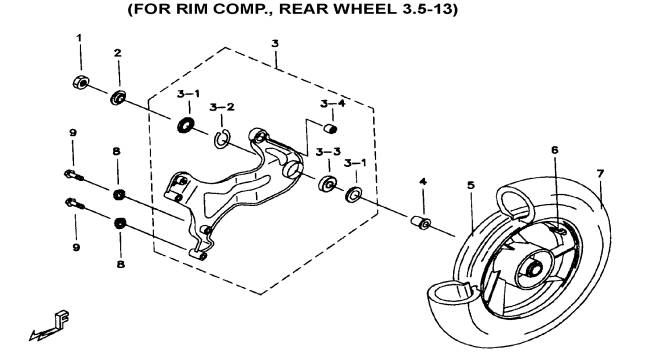

REAR WHEEL

BR9-D

ITEM NO.

PART NO.

DESCRIPTION

Q'TY

AMEND

NOTE

01

GA558NT03

NUT, SELFLOCK M16X14

1

02

412921

COLLAR

1

03

412919

REAR FORK ASSY.

1

03-1

412917

OIL SEAL

2

03-2

R01001

RETAINER RING, C TYPE

1

03-3

412918

BEARING

1

03-4

400038

BUSH COMP.

1

04

412916

COLLAR

1

05

413401YSG

RIM COMP., REAR WHEEL 3.5-13 (AL)(SILVER)

1

05A

413401YOR

RIM COMP., REAR WHEEL 3.5-13 (AL)(ORANGE)

1

05B

413401YYE

RIM COMP., REAR WHEEL 3.5-13 (AL)(YELLOW)

1

05C

410186C

RIM COMP., REAR WHEEL 3.5-13(AL)(CHROMIUM PLAT

1

05D

413401YFR

RIM COMP., REAR WHEEL 3.5-13 (AL)(RED)

1

05E

413401YPA

RIM COMP., REAR WHEEL 3.5-13 (AL)(BLACK)

1

05F

413401AYPA

RIM COMP., REAR WHEEL 3.5-13 (AL)(BLACK)

(POLISHED)

1

05G

413401AYOY

RIM COMP., REAR WHEEL 3.5-13 (AL)(ORANGE)(POLI

1

05H

413401AYFR

RIM COMP., REAR WHEEL 3.5-13 (AL)(RED)(POLISHED

1

05I

413401AYOR

RIM COMP., REAR WHEEL 3.5-13 (AL)(ORANGE)(POLIS

1

05J

413401AYYE

RIM COMP., REAR WHEEL 3.5-13 (AL)(YELLOW)(POLIS

1

05K

413401AYSG

RIM COMP., REAR WHEEL 3.5-13 (AL)(SILVER)(POLISH

1

05L

413401AYJG

RIM COMP., REAR WHEEL 3.5-13 (AL)(GREEN)

1

06

GF5299901

INLET COMP., AIR

1

07

412900-S

TIRE 130/60-13

1

08

GA556WS04

SPRING WASHER 8.2X3.2X2t

2

09

S20809

BOLT, FLANGE M8X42

2
