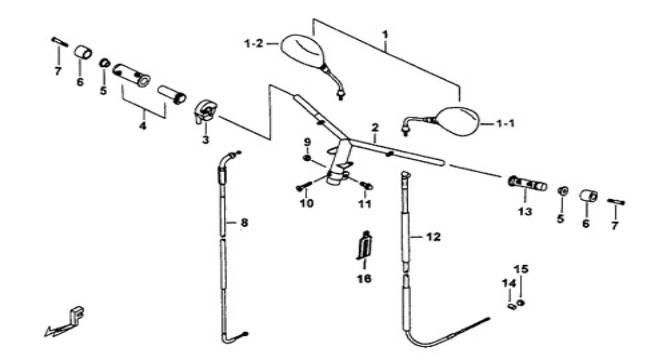

| 30 | HANDLE BAR | BR9-D | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 410151 | MIRROR ASSY., REAR VIEW | 1 | ||||
| 01-1 | 410152 | MIRROR, REAR VIEW, LH. | 1 | ||||
| 01-2 | 410153 | MIRROR, REAR VIEW, RH. | 1 | ||||
| 02 | 413027 | HANDLE BAR ASSY. | 1 | ||||
| 03 | 413073 | THROTTLE HOUSING | 1 | ||||
| 04 | 401828 | GRIP ASSY., RH. | 1 | ||||
| 05 | 401801 | COLLAR | 2 | ||||
| 06 | 401802 | END, GRIP | 2 | ||||
| 06A | 413024 | END, GRIP (CHROMIUM PLATED) | 2 | ||||
| 07 | S35601 | SCREW, FLAT HEAD | 2 | ||||
| 07A | S35604 | SCREW, FLAT HEAD (CHROMIUM PLATED) | 2 | ||||
| 08 | 402101 | CABLE, THROTTLE | 1 | ||||
| 09 | GA551NT01 | NUT, SELFLOCK M10X1.0 | 1 | ||||
| 10 | GA557SC02 | SCREW, FLAT HEAD M8X35 | 1 | ||||
| 11 | GA557SC01 | BOLT, FLANGE M10X43 | 1 | ||||
| 12 | 413035 | CABLE, REAR BRAKE | 1 | ||||
| 13 | 401827 | GRIP, LH. | 1 | ||||
| 14 | GI530PN01 | PIN, STOP∮12X22 | 1 | ||||
| 15 | GI530NT01 | NUT, ADJUSTING M6X16 | 1 | ||||
| 16 | GA501SR01 | CLAMP | 1 | ||||
