29

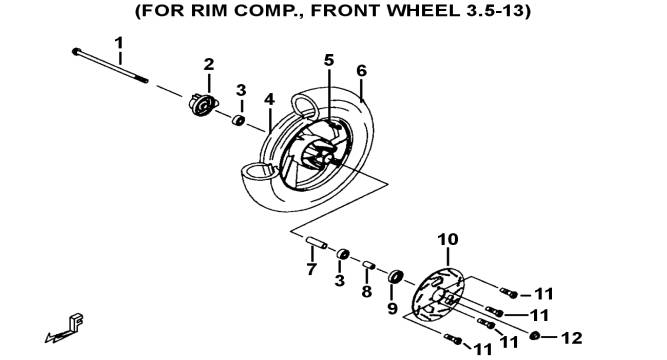

FRONT WHEEL

BR9-D

ITEM NO.

PART NO.

DESCRIPTION

Q'TY

AMEND

NOTE

01

GI529FE01

SHAFT, FRONT WHEEL 12X218

1

02

GI5299901

GEAR COMP., SPEEDOMETER

1

03

GI529BR01YT

BEARING 12X32X10

2

04

412927YSG

RIM COMP., FRONT WHEEL 3.5-13 (AL)(SILVER)

1

04A

412927YOR

RIM COMP., FRONT WHEEL 3.5-13 (AL)(ORANGE)

1

04B

412927YYE

RIM COMP., FRONT WHEEL 3.5-13 (AL)(YELLOW)

1

04C

410188C

RIM COMP., FRONT WHEEL 3.5-13(AL)(CHROMIUM PLA

1

04D

412927YFR

RIM COMP., FRONT WHEEL 3.5-13 (AL)(RED)

1

04E

412927YPA

RIM COMP., FRONT WHEEL 3.5-13 (AL)(BLACK)

1

04F

412927AYPA

RIM COMP., FRONT WHEEL 3.5-13 (AL)(BLACK)

(POLISHED)

1

04G

412927AYOY

RIM COMP., FRONT WHEEL 3.5-13 (AL)(ORANGE)(POLI

1

04H

412927AYFR

RIM COMP., FRONT WHEEL 3.5-13 (AL)(RED)

(POLISHED)

1

04I

412927AYOR

RIM COMP., FRONT WHEEL 3.5-13 (AL)(ORANGE)(POLI

1

04J

412927AYYE

RIM COMP., FRONT WHEEL 3.5-13 (AL)(YELLOW)(POLI

1

04K

412927AYSG

RIM COMP., FRONT WHEEL 3.5-13 (AL)(SILVER)(POLIS

1

04L

412927AYJG

RIM COMP., FRONT WHEEL 3.5-13 (AL)(GREEN)(POLIS

1

05

GF5299901

INLET COMP., AIR

1

06

412900-S

TIRE 130/60-13

1

07

401792

COLLAR SET

1

08

GI529BS01

COLLAR

1

09

GI529OS01

OIL SEAL 18X35X7

1

10

410200Y

DISC, BRAKE 220mm

1

11

GA558SC02

BOLT M8X1.25X15L

4

12

N25201

NUT, SELFLOCK M12X1.25

1
