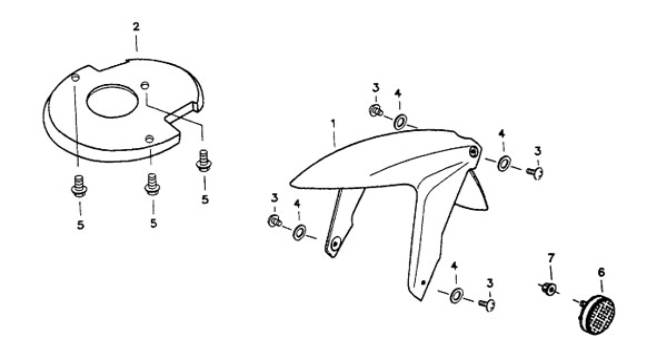

| 28 | FRONT FENDER | BR9-D | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 456004 | FRONT FENDER | 1 | ||||
| 02 | 456002A | FENDER, FIXED, FRONT | 1 | ||||
| 03 | GA555SC03 | SCREW, AN HEAD M6X16 | 4 | ||||
| 04 | GA556WS02 | WASHER | 4 | ||||
| 05 | GA556SC01 | BOLT, FLANGE M6X1.0X12L | 3 | ||||
| 06 | GF5189903B | REFLECTOR, FRONT | 2 | ||||
| 07 | GA554NT04 | NUT, FLANGE M6xP1.0 | 2 | ||||
