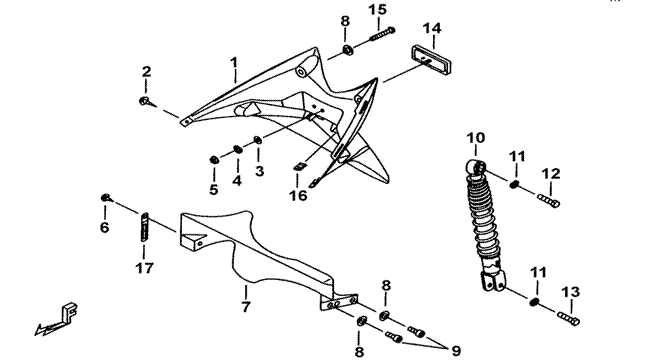

33 REAR FENDER   BM1-U

BM1_33



















ITEM NO. PART NO. DESCRIPTION Q'TY AMEND NOTE
01 458020A FENDER, REAR 1
02 GA552SC11 SCREW, TAPPING M4X16 2
03 GA552WS05 WASHER 1
04 W10501 SPRING WASHER 1
05 GA552NT05 NUT, FLANGE M5 1
06 S50506 SCREW, TAPPING 1
07 458004 SPLASH BOARD 1
08 GA556WS02 WASHER 4
09 S70609 SCREW, SOCKET HEAD M6x16 2
10 410158 ABSORBER ASSY., SHOCK, REAR 1
11 GA556WS06 WASHER, SPRING  10.2X3.7X2.5t 2
12 GA556SC03 BOLT, HEX. HEAD M10X1.25X40L 1
13 GA556SC04 BOLT, HEX. HEAD 10X34 1
14 458015 REFLECTOR ASSY., REAR 1
15 S70618 BOLT M6X35 2
16 GA552NT01 NUT, SPRING M4 2
17 GA501SR01 CLAMP 1
