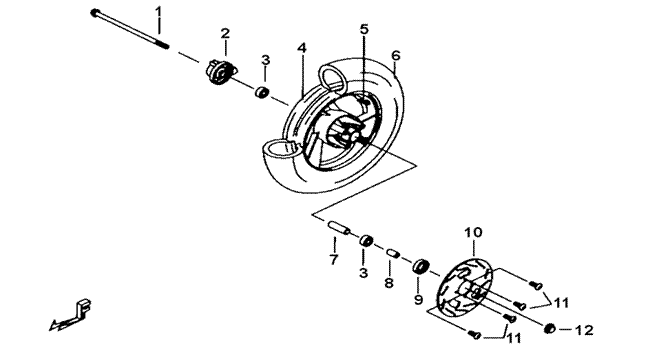

29 FRONT WHEEL (FOR 13" RIM)   BM1-U

BM1_29



















ITEM NO. PART NO. DESCRIPTION Q'TY AMEND NOTE
01 GI529FE01 SHAFT, FRONT WHEEL 12X218 1
02 GI5299901 GEAR COMP., SPEEDOMETER 1
03 GI529BR01 BEARING 12X32X10 2
04 412927AYPA RIM COMP., FRONT WHEEL 3.5-13 (AL)(BLACK)

(POLISHED)		 1
05 GF5299901 INLET COMP., AIR 1
06 412900-S TIRE 130/60-13 1
07 401792 COLLAR SET 1
08 GI529BS01 COLLAR 1
09 GI529OS01 OIL SEAL 18X35X7 1
10 410200Y DISC, BRAKE  220mm 1
11 GA558SC02 BOLT M8X1.25X15L 4
12 N25201 NUT, SELFLOCK M12X1.25 1
