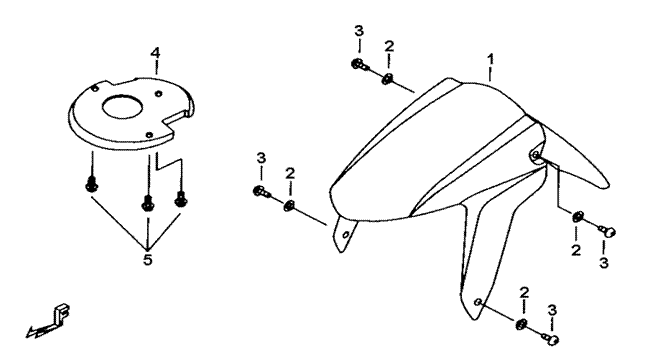

28 FRONT FENDER   BM1-U

BM1_28



















ITEM NO. PART NO. DESCRIPTION Q'TY AMEND NOTE
01 456010 FRONT FENDER 1
02 GA556WS02 WASHER 4
03 GA555SC03 SCREW, AN HEAD M6X16 4
04 456002A FENDER, FIXED, FRONT 1
05 GA556SC01 BOLT, FLANGE M6X1.0X12L 3
