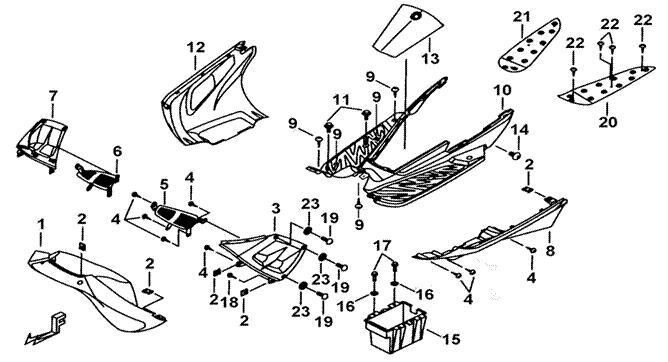

REAR LEG SHIELD |
|
BM1-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
455030 |
COVER, LOWER |
1 |
|
|
|
| 02 |
GA552NT01 |
NUT, SPRING M4 |
10 |
|
|
|
| 03 |
455031 |
LEG SHIELD, SIDE LH. |
1 |
|
|
|
| 04 |
S50401 |
SCREW TAPPING M4X12 |
13 |
|
|
|
| 05 |
455038 |
PLATE, AIR INLET, LH. |
1 |
|
|
|
| 06 |
455039 |
PLATE, AIR INLET, RH. |
1 |
|
|
|
| 07 |
455032 |
LEG SHIELD, SIDE RH. |
1 |
|
|
|
| 08 |
455046 |
LEG SHIELD, LOWER, LH. |
1 |
|
|
|
| 09 |
GA552SC11 |
SCREW, TAPPING M4X16 |
11 |
|
|
|
| 10 |
455045 |
LEG SHIELD, REAR |
1 |
|
|
|
| 11 |
S25602 |
BOLT M6X16L |
4 |
|
|
|
| 12 |
455047 |
LEG SHIELD, LOWER, RH. |
1 |
|
|
|
| 13 |
455037 |
LID, BATTERY |
1 |
|
|
|
| 14 |
GA555SC02 |
SCREW, AN HEAD |
2 |
|
|
|
| 15 |
455036 |
BATTERY BOX |
1 |
|
|
|
| 16 |
GA556WS02 |
WASHER |
4 |
|
|
|
| 17 |
GA555SC05 |
BOLT, OUTLET M6X1.0X16L |
4 |
|
|
|
| 18 |
S50402 |
SCREW,TAPPING M4X10 |
2 |
|
|
|
| 19 |
S72504 |
BOLT M5X20 |
6 |
|
|
|
| 20 |
455040 |
MAT, LH.(AL) |
1 |
|
|
|
| 21 |
455041 |
MAT RH. (AL) |
1 |
|
|
|
| 22 |
S50407 |
SCREW, TAPPING M4X12 |
8 |
|
|
|
| 23 |
W99525 |
WASHER |
6 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
