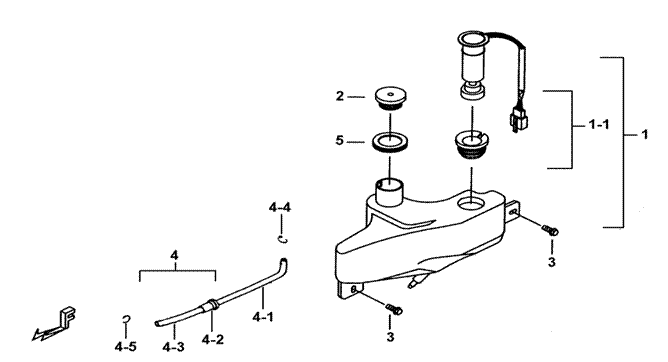

22 OIL TANK     BM1-U

BM1_22



















ITEM NO. PART NO. DESCRIPTION Q'TY AMEND NOTE
01 412202 TANK, OIL COMP. 1
01-1 BH1229901 SWITCH ASSY., OIL LEVEL 1
02 GA553RB05 CAP, OIL TANK 1
03 GA551SC09 BOLT, FLANGE M6X20 2
04 425049 CLEANER COMP., OIL 1
04-1 425046 HOSE 1
04-2 425005 CLEANER ASSY., OIL 1
04-3 425050 HOSE 1
04-4 R36802 CLIP 3
04-5 R50901 CLIP ∮9.5 1
05 GA553RB04 RUBBER, OIL TANK INLET 1
