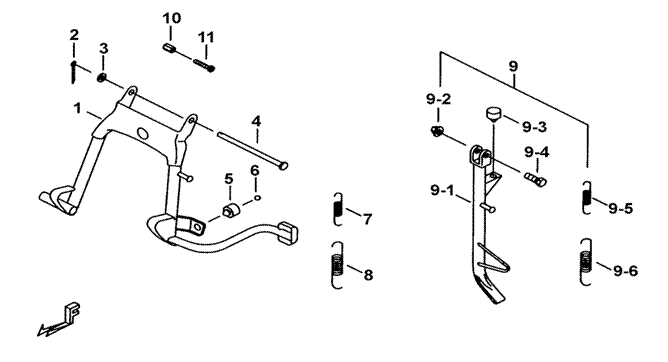

20 STAND     BM1-U

BM1_20



















ITEM NO. PART NO. DESCRIPTION Q'TY AMEND NOTE
01 412050 STAND COMP., MAIN 1
02 GA551PN04 PIN, COTTER 1
03 W99806 WASHER 8.5X16X2 1
04 GA551PN03 SHAFT, MAIN STAND 1
05 401701 CUSHION 1
06 GF519FE04 BALL ∮6.35 1
07 GA551SP04 SPRING 9X107X1.4 1
08 GA551SP02 SPRING 16X114X2.8 1
09 413988 STAND COMP., SIDE 1
09-1 412047 SIDE STAND COMP. 1
09-2 GA551NT02 NUT, FLANGE SELRLOCK  M10x10 1
09-3 GA551RB05 CUSHION 1
09-4 GA551SC03 BOLT 1
09-5 402161 SPRING, SIDE STAND 1
09-6 402160 SPRING, SIDE STAND 1
10 GA551NT03 NUT 1
11 GA551SC04 BOLT 1
