| 19 |

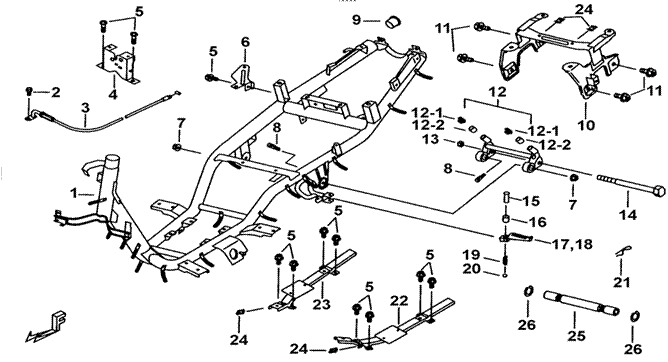

FRAME |
|
|
BM1-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
411975 |
FRAME |
1 |
|
|
|
| 02 |
S13502 |
SCREW,CROSS RECESSED,PAN HEAD M5X10 |
1 |
|
|
|
| 03 |
411977 |
CABLE, LOCK SET, SEAT |
1 |
|
|
|
| 04 |
BH1199904 |
LOCK SET, SEAT |
1 |
|
|
|
| 05 |
GA556SC01 |
BOLT, FLANGE M6X1.0X12L |
11 |
|
|
|
| 06 |
411981 |
BRKT, 2ND AIR |
1 |
|
|
|
| 07 |
GA551NT01 |
NUT, SELFLOCK M10X1.0 |
2 |
|
|
|
| 08 |
S06001 |
BOLT, HANGER |
2 |
|
|
|
| 09 |
411972 |
RUBBER CAP |
1 |
|
|
|
| 10 |
411982 |
BRKT COMP., HANDLE |
1 |
|
|
|
| 11 |
GA551SC02 |
BOLT |
4 |
|
|
|
| 12 |
401797 |
ROCKER ARM ASSY., HANGER |
1 |
|
|
|
| 12-1 |
401794 |
COMPRESSION SPRING |
2 |
|
|
|
| 12-2 |
GI519RB01 |
DAMPER, RUBBER |
2 |
|
|
|
| 13 |
N25201 |
NUT, SELFLOCK M12X1.25 |
1 |
|
|
|
| 14 |
S21203 |
BOLT, HEX. HEAD |
1 |
|
|
|
| 15 |
GA551PN02 |
PIN 6X34 |
2 |
|
|
|
| 16 |
GF519FE01 |
COLLAR, PIN 6X8X20 |
2 |
|
|
|
| 17 |
GF519AL05 |
FOOTREST ASSY., PILLON, LH. |
1 |
|
|
|
| 18 |
GF519AL06 |
FOOTREST ASSY., PILLION, RH. |
1 |
|
|
|
| 19 |
GF519SP01 |
SPRING, COMPRESSION 6X12.5 |
2 |
|
|
|
| 20 |
GF519FE04 |
BALL ∮6.35 |
2 |
|
|
|
| 21 |
GA551PN01 |
COTTER PIN 1.5X30 |
2 |
|
|
|
| 22 |
411983 |
L REINFORCEMENT FLOOR COMP. |
1 |
|
|
|
| 23 |
411984 |
R REINFORCEMENT FLOOR COMP. |
1 |
|
|
|
| 24 |
N32601 |
NUT, SPRING |
4 |
|
|
|
| 25 |
BH102FE01 |
SLEEVE, HANGER |
1 |
|
|
|
| 26 |
R00701 |
RETAINER RING, C TYPE ∮16 |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
