| 17 |

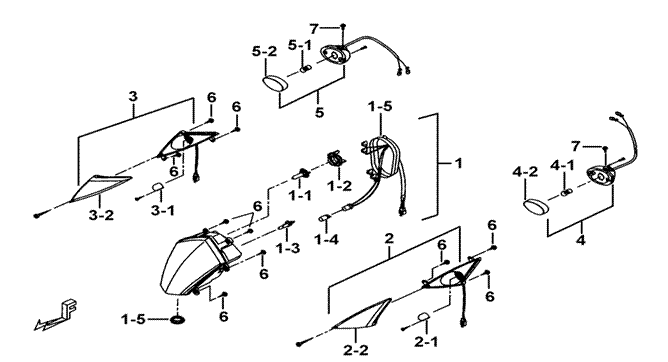

HEAD LAMP AND FRONT TURN SIGNAL LAMP |
|
BM1-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
450039Y |
HEAD LAMP ASSY. |
1 |
|
|
|
| 01-1 |
450067 |
BULB |
1 |
|
|
|
| 01-2 |
450066 |
BRACKET, BULB |
1 |
|
|
|
| 01-3 |
450068 |
BULB |
1 |
|
|
|
| 01-4 |
400517 |
BULB 12V, 5W |
1 |
|
|
|
| 01-5 |
450069 |
SOCKET COMP. |
1 |
|
|
|
| 02 |
450040A |
TURN SIGNAL LAMP COMP., LH. |
1 |
|
|
|
| 02-1 |
450059 |
LENS |
1 |
|
|
|
| 02-2 |
450056 |
LENS, TURN SIGNAL, LH. FRONT |
1 |
|
|
|
| 03 |
450041A |
TURN SIGNAL LAMP COMP., RH. |
1 |
|
|
|
| 03-1 |
450059 |
LENS |
1 |
|
|
|
| 03-2 |
450057 |
LENS, TURN SIGNAL, RH. FRONT |
1 |
|
|
|
| 04 |
450037 |
TURN SIGNAL LAMP COMP., LH. FRONT |
1 |
|
|
|
| 04-1 |
GF5170006 |
BULB, 12V, R10W |
1 |
|
|
|
| 04-2 |
450044 |
LENS, TURN SIGNAL, LH. |
1 |
|
|
|
| 05 |
450038 |
TURN SIGNAL LAMP COMP., RH. FRONT |
1 |
|
|
|
| 05-1 |
GF5170006 |
BULB, 12V, R10W |
1 |
|
|
|
| 05-2 |
450045 |
LENS, TURN SIGNAL, RH. |
1 |
|
|
|
| 06 |
GA552SC11 |
SCREW, TAPPING M4X16 |
12 |
|
|
|
| 07 |
GA552SC06 |
BOLT, OVAL HEAD 5X12 |
2 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
