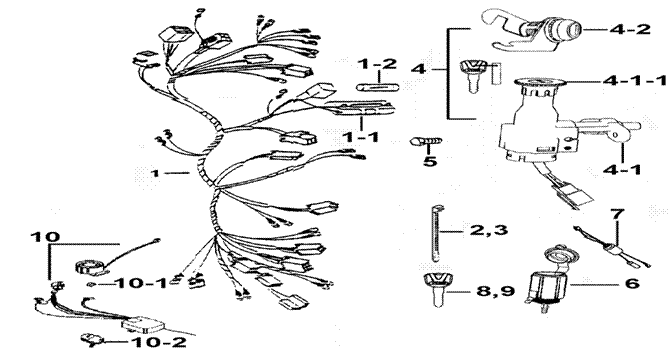

15 WIRING HARNESS AND LOCK SET   BM1-U

BM1-U_15



















ITEM NO. PART NO. DESCRIPTION Q'TY AMEND NOTE
01 441014 WIRING HARNESS 1
01-1 GF5159906 CASE SET, FUSE 1
01-2 GF5159907 FUSE 7A 1
02 400535 CLAMP  L300 2
03 GA510SR02 CLAMP  L200 1
04 440979 LOCK ASSY. 1
04-1 440991 LOCK SET, STEERING 1
04-1-1 440996 CAP, INDICATOR 1
04-2 440992-S LOCK 1
05 S96601 SCREW, SPECIAL 2
06 440986 POWER SOURCE 1
07 440990 CONNECT WIRE 1
08 440997 BLANK KEY 1
09 440998 BLANK KEY 1
10 441007Y ALARM ASSY. 1
10-1 441013Y REMOTE CONTROL 1
10-2 924425 FUSE, 10A 1
