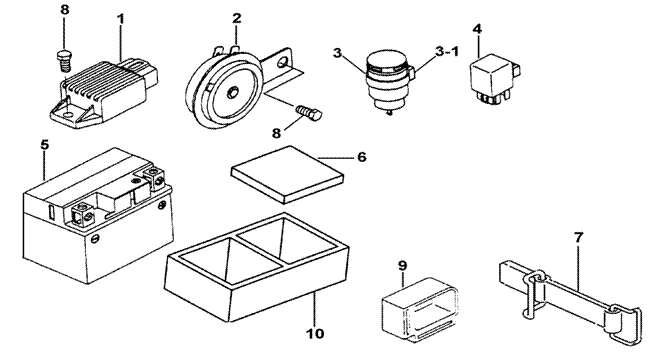

14 BATTERY, HORN, RELAY, RECTIFIER   BM1-U

BM1-U_14



















ITEM NO. PART NO. DESCRIPTION Q'TY AMEND NOTE
01 GA5140001 RECTIFIER ASSY. 1
02 GF5149906 HORN ASSY. 1
03 440800A RELAY, TURN SIGNAL 1
03-1 440745 BUSH, RUBBER 1
04 GA5100004 RELAY, STARTING MOTOR 1
05 GA5140003 BATTERY, 4AH 1
06 GF514TH02 CUSHION 8
07 526405 BAND, BATTERY 1
08 GA510SC03 SCREW, HEX. HEAD M6X16 2
09 GE514RB02 BUSH, RUBBER 1
10 440767 CUSHION, BATTERY 1
