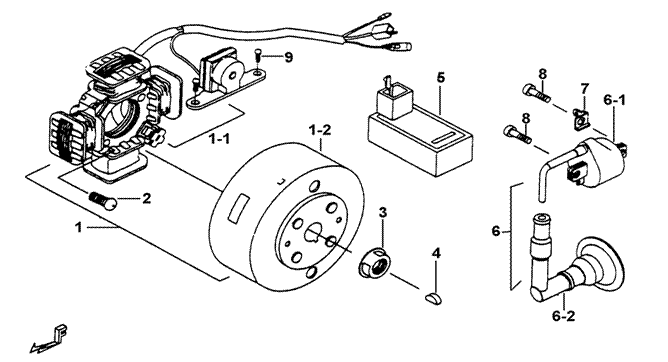

13 FLYWHEEL MAGNETO AND IGNITION COIL   BM1-U

BR1_13



















ITEM NO. PART NO. DESCRIPTION Q'TY AMEND NOTE
01 440987 FLYWHEEL MAGNETO ASSY. 1
01-1 440994 STATOR ASSY. 1
01-2 440995 ROTOR ASSY. 1
02 S79603 SCREW, SOCKET HEADM6X25 2
03 GA501NT01 NUT, FLANGE M10 1
04 GA501KY01 KEY 1
05 GE5139902 C.D.I (UNLIMITED SPEED) 1
06 GE5139903 COIL ASSY., IGNITION 1
06-1 GE5139906 COIL SET, IGNITION 1
06-2 GE513RB01 CAP SET, SPARK  PLUG 1
07 440564 EARTH TERMINAL 1
08 S70607 SCREW, SOCKET HEAD M6X20 2
09 S79503 SCREW, SOCKET HEAD 2
