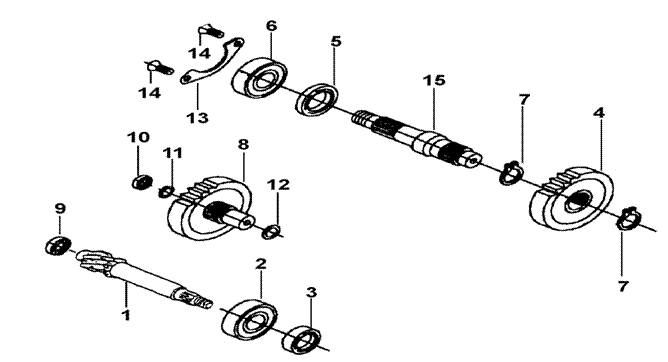

REDUCING GEAR |
|
BM1-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
427529 |
SHAFT, DRIVE 15T |
1 |
|
|
|
| 02 |
GA507BR04 |
BEARING, DRIVE SHAFT, LH. 17x47x14 |
1 |
|
|
|
| 03 |
GA507OS01 |
OIL SEAL, DRIVE SHAFT 17x27x5 |
1 |
|
|
|
| 04 |
427535 |
GEAR, FINAL DRIVEN 35T |
1 |
|
|
|
| 05 |
GA507OS02 |
OIL SEAL, REAL AXLE
27x40x6 |
1 |
|
|
|
| 06 |
GA507BR06 |
BEARING, GEAR AXLE, RH. 20x47x14 |
1 |
|
|
|
| 07 |
GA507SR02 |
CIRCLIP, FINAL DRIVEN GEAR ∮ 22 |
2 |
|
|
|
| 08 |
427539 |
SHAFT COMP., IDLE
51T/10T |
1 |
|
|
|
| 09 |
GA507BR03 |
BEARING, DRIVE SHAFT, RH.
12X32X10 |
1 |
|
|
|
| 10 |
GA507BR02 |
BEARING, IDLER, RH. 12x32x10 |
1 |
|
|
|
| 11 |
GA507WS01 |
WASHER, IDLE SHAFT, RH. 12x20x1 |
1 |
|
|
|
| 12 |
GA507WS02 |
WASHER, IDLE SHAFT, LH. |
1 |
|
|
|
| 13 |
GA507FE04 |
RETAINER, REAR AXLE
BEARING |
1 |
|
|
|
| 14 |
GA507SC01 |
SCREW, BEARING RETAINER M6x16 |
2 |
|
|
|
| 15 |
427540 |
SHAFT, REAR AXLE |
1 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
