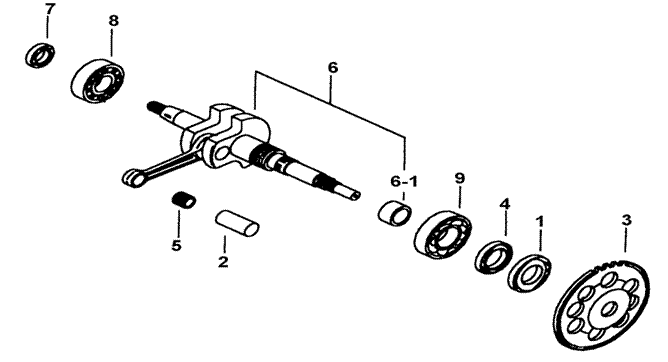

3 CRANK SHAFT   BM1-U

BM1_3



















ITEM NO. PART NO. DESCRIPTION Q'TY AMEND NOTE
01 GA505OS03 SEAL, OIL  24X43X6 1
02 GA505PN01 PIN, PISTON 1
03 GA505FE05 GEAR, STARTER 1
04 GA505OS02 OIL SEAL, LH. 25X37X6 1
05 GA505BR01A BEARING, PISTON PIN  10X14X12.5 1
06 GA5050006Y CRANK SHAFT ASSY. 1
06-1 GA505BS01 SPACER 18X24X14 1
07 GA505OS01 OIL SEAL, RH. 17X27X6 1
08 GA505BR03 BEARING,  RH. 20X47X14 1
09 GA505BR04 BEARING, LH. 25X52X13 1
