| 228 |

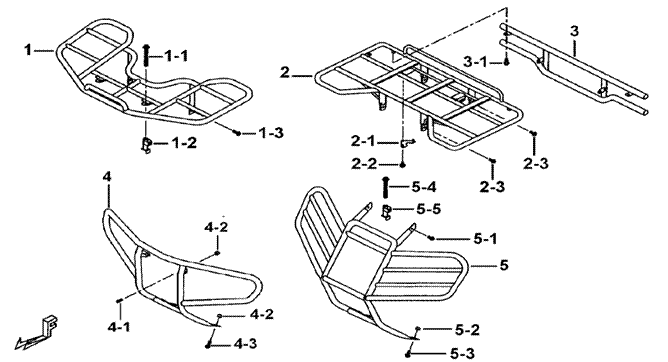

CARRIER、BUMPER (OPTION) |
|
FBE-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
515063A |
FRONT CARRIER COMP. |
1 |
|
|
|
| 01-1 |
S20024 |
BOLT |
2 |
|
|
|
| 01-2 |
512027 |
BRACKET |
2 |
|
|
|
| 01-3 |
S20002 |
BOLT,FLANGE M10X1.25 |
2 |
|
|
|
| 02 |
513952A |
REAR CARRIER COMP. |
1 |
|
|
|
| 02-1 |
513943 |
BRACKET |
1 |
|
|
|
| 02-2 |
GA504SC12 |
BOLT, FLANGE 8X12 |
1 |
|
|
|
| 02-3 |
S20801 |
BOLT, FLANGE M8X20 |
4 |
|
|
|
| 03 |
514079A |
BUMPER, REAR COMP.(STEEL) |
1 |
|
|
|
| 03-1 |
S20801 |
BOLT, FLANGE M8X20 |
2 |
|
|
|
| 04 |
512012A |
BUMPER, FRONT COMP.(STEEL) |
1 |
|
|
|
| 04-1 |
S20617 |
BOLT, FLANGE |
2 |
|
|
|
| 04-2 |
514506 |
SPACER |
4 |
|
|
|
| 04-3 |
S20812 |
BOLT, FLANGE |
2 |
|
|
|
| 05 |
514072A |
BUMPER, FRONT COMP.(STEEL) |
1 |
|
|
|
| 05-1 |
S20801 |
BOLT, FLANGE M8X20 |
2 |
|
|
|
| 05-2 |
514506 |
SPACER |
2 |
|
|
|
| 05-3 |
S20812 |
BOLT, FLANGE |
2 |
|
|
|
| 05-4 |
S20018 |
BOLT |
2 |
|
|
|
| 05-5 |
512016 |
BRACKET |
2 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
