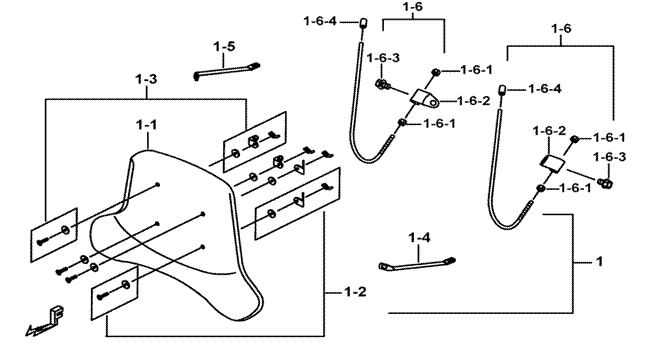

| 227 | FIXED ROD ASSY. (OPTION) | FBE-U | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 514017 | FIXED ROD SET | 1 | ||||
| 01-1 | 457028 | WIND-SHIELD | 1 | ||||
| 01-2 | 514052 | BLOT SET | 2 | ||||
| 01-3 | 457046 | BLOT SET | 2 | ||||
| 01-4 | 514050 | BATTEN, LH. | 1 | ||||
| 01-5 | 514051 | BATTEN, RH. | 1 | ||||
| 01-6 | 514063 | FIXED ROD ASSY. | 2 | ||||
| 01-6-1 | N01001 | NUT M10X1.25 | 4 | ||||
| 01-6-2 | 457031 | CLAMP | 2 | ||||
| 01-6-3 | S21808 | BOLT M8X1.25X12L | 2 | ||||
| 01-6-4 | GA524RB02 | BUSH, RUBBER | 2 | ||||
