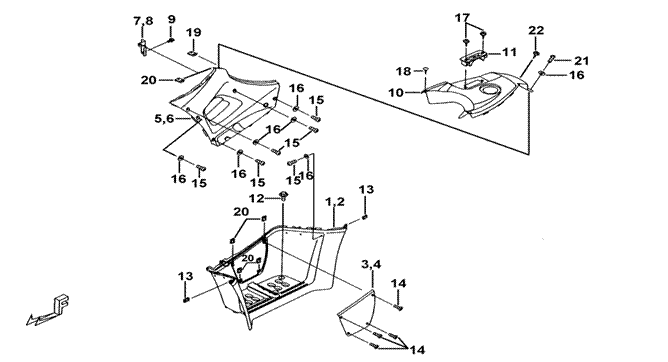

| 222 | FOOT BOARD | FBE-U | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 512524A | FOOT BOARD, LH | 1 | ||||
| 02 | 512525 | FOOT BOARD, RH | 1 | ||||
| 03 | 512511 | OIL FILLER COVER, LH | 1 | ||||
| 04 | 512513 | OIL FILLER COVER, RH | 1 | ||||
| 05 | 512522A | SIDE COVER, LH | 1 | ||||
| 05A | 512522WA | SIDE COVER, LH(CAMO) | 1 | ||||
| 06 | 512523A | SIDE COVER, RH | 1 | ||||
| 06A | 512523W | SIDE COVER, RH(CAMO) | 1 | ||||
| 07 | 512514 | BRKT., SIDE COVER, LH | 1 | ||||
| 08 | 512515 | BRKT., SIDE COVER, RH | 1 | ||||
| 09 | GA556SC01 | BOLT, FLANGE M6X1.0X12L | 2 | ||||
| 10 | 512505 | FUEL TANK COVER, UPPER | 1 | ||||
| 10A | 512505W | FUEL TANK COVER, UPPER(CAMO) | 1 | ||||
| 11 | 512516 | GEAR CHANGE INDICATOR SUPPORT | 1 | ||||
| 12 | S25602 | BOLT M6X16L | 6 | ||||
| 13 | N32501 | NUT, SPRING M5 | 4 | ||||
| 14 | S51404 | SCREW TAPPING M4X12 | 8 | ||||
| 15 | S72605 | BOLT, HEX HEAD M6X16 | 22 | ||||
| 16 | GA555WS02 | WASHER | 24 | ||||
| 17 | S50501 | SCREW, OVAL HEAD M5X12L | 2 | ||||
| 18 | S50406 | SCREW, TAPPING M4X16 | 2 | ||||
| 19 | N32601 | NUT, SPRING | 2 | ||||
| 20 | GA552NT01 | NUT, SPRING M4 | 10 | ||||
| 21 | S72603 | BOLT, HEX HEAD M6X12 | 2 | ||||
| 22 | S50407 | SCREW, TAPPING M4X12 | 2 | ||||
