| 221 |

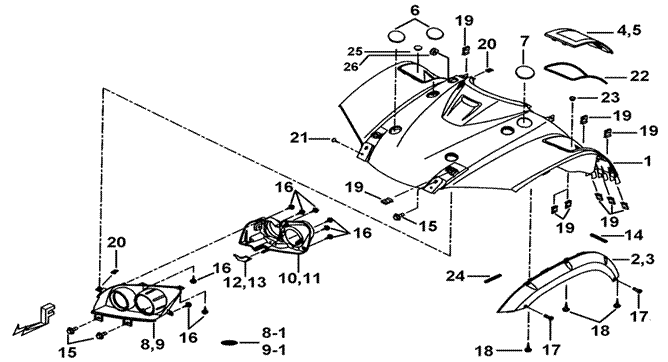

FRONT BODY COVER. |
|
FBE-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
512415 |
FRONT BODY COVER |
1 |
|
|
|
| 01A |
512415W |
FRONT BODY COVER(CAMO) |
1 |
|
|
|
| 02 |
512418 |
FRONT FENDER SIDE RAIL, LH |
1 |
|
|
|
| 03 |
512419 |
FRONT FENDER SIDE RAIL, RH |
1 |
|
|
|
| 04 |
512421 |
GLOVE COMPARTMENT, LH |
1 |
|
|
|
| 04A |
512421W |
GLOVE COMPARTMENT, LH(CAMO) |
1 |
|
|
|
| 05 |
512422 |
GLOVE COMPARTMENT, RH |
1 |
|
|
|
| 05A |
512422W |
GLOVE COMPARTMENT, RH(CAMO) |
1 |
|
|
|
| 06 |
512425 |
CARRIER COVER |
4 |
|
|
|
| 07 |
512424 |
RESERVOIR COVER |
1 |
|
|
|
| 07A |
512424W |
RESERVOIR COVER(CAMO) |
1 |
|
|
|
| 08 |
512416A |
HEAD LAMP SUPPORT ASSY., LH |
1 |
|
|
|
| 08-1 |
514649 |
ALUMINUM FOIL LABEL |
1 |
|
|
|
| 09 |
512417A |
HEAD LAMP SUPPORT ASSY., RH |
1 |
|
|
|
| 09-1 |
514649 |
ALUMINUM FOIL LABEL |
1 |
|
|
|
| 10 |
512437 |
FENDER, HEAD LAMP LH. |
1 |
|
|
|
| 11 |
512438 |
FENDER, HEAD LAMP RH. |
1 |
|
|
|
| 12 |
512442 |
FENDER, LH. |
1 |
|
|
|
| 13 |
512443 |
FENDER RH. |
1 |
|
|
|
| 14 |
512436 |
BAND, WATERPROOF |
2 |
|
|
|
| 15 |
S25602 |
BOLT M6X16L |
6 |
|
|
|
| 16 |
S57501 |
SCREW,OVAL HEAD, FLANGE M5X14 |
18 |
|
|
|
| 17 |
S41501 |
BOLT M5X12 |
4 |
|
|
|
| 18 |
GA552SC11 |
SCREW, TAPPING M4X16 |
6 |
|
|
|
| 19 |
N32601 |
NUT, SPRING |
16 |
|
|
|
| 20 |
GA552NT01 |
NUT, SPRING M4 |
4 |
|
|
|
| 21 |
S50401 |
SCREW TAPPING M4X12 |
2 |
|
|
|
| 22 |
512423 |
BAND, WATERPROOF |
2 |
|
|
|
| 23 |
454016 |
RUBBER PLUG |
2 |
|
|
|
| 24 |
512439 |
BAND, WATERPROOF |
2 |
|
|
|
| 25 |
512434 |
RUBBER PLUG |
1 |
|
|
|
| 26 |
512430 |
RUBBER PLUG |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
