| 207 |

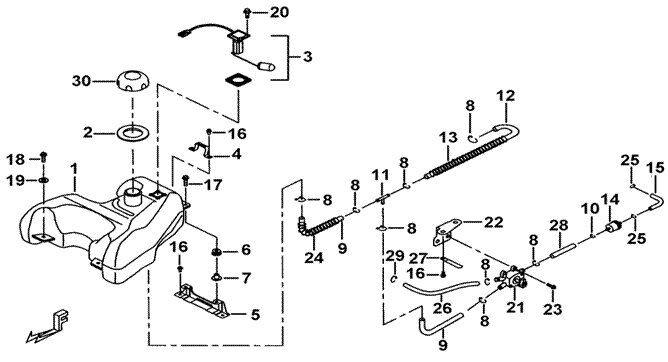

FUEL TANK |
|
|
FBE-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
512143 |
FUEL TANK ASSY. |
1 |
|
|
|
| 02 |
512125 |
ORNAMENT, FUEL TANK |
1 |
|
|
|
| 03 |
512124 |
GAUGE ASSY., FUEL LEVEL |
1 |
|
|
|
| 04 |
512123 |
BRACKET, SEAT, FRONT |
1 |
|
|
|
| 05 |
512122 |
BRACKET, FUEL TANK |
1 |
|
|
|
| 06 |
512120 |
CUSHION |
2 |
|
|
|
| 07 |
512119 |
SPACER |
2 |
|
|
|
| 08 |
R40201 |
CLIP |
8 |
|
|
|
| 09 |
512131 |
HOSE |
2 |
|
|
|
| 10 |
R36901 |
CLIP |
1 |
|
|
|
| 11 |
512135 |
THREE WAY TUBE UNIT |
1 |
|
|
|
| 12 |
512132 |
HOSE |
1 |
|
|
|
| 13 |
512137 |
SPRING 250L |
1 |
|
|
|
| 14 |
512139 |
FILTER, FUEL |
1 |
|
|
|
| 15 |
412107 |
HOSE, FUEL |
1 |
|
|
|
| 16 |
GA556SC01 |
BOLT, FLANGE M6X1.0X12L |
6 |
|
|
|
| 17 |
S20802 |
BOLT, FLANGE |
2 |
|
|
|
| 18 |
S20801 |
BOLT, FLANGE M8X20 |
2 |
|
|
|
| 19 |
W99005 |
WASHER |
2 |
|
|
|
| 20 |
S07501 |
BOLT,HEX HEAD |
4 |
|
|
|
| 21 |
512133 |
COCK ASSY., FUEL |
1 |
|
|
|
| 22 |
512130 |
BRACKET |
1 |
|
|
|
| 23 |
GA551SC09 |
BOLT, FLANGE M6X20 |
2 |
|
|
|
| 24 |
512138 |
SPRING |
1 |
|
|
|
| 25 |
R36801 |
CLIP ∮8.5 |
2 |
|
|
|
| 26 |
512145 |
HOSE |
1 |
|
|
|
| 27 |
514410 |
CLAMP |
1 |
|
|
|
| 28 |
512136 |
HOSE |
1 |
|
|
|
| 29 |
R40501 |
CLIP |
1 |
|
|
|
| 30 |
512116 |
FUEL CAP |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
