| 204 |

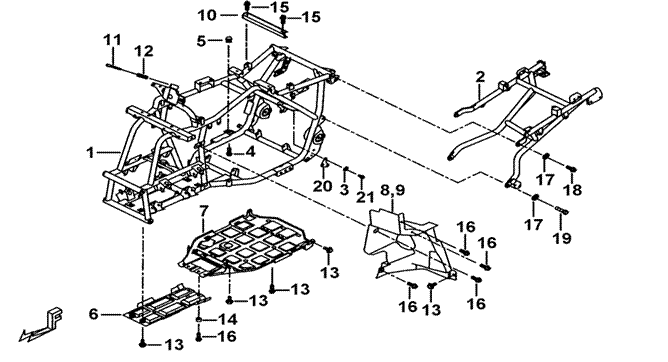

FRAME |
|
|
FBE-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
511943 |
MAIN FRAME |
1 |
|
|
|
| 02 |
511944 |
REAR FRAME |
1 |
|
|
|
| 03 |
GA556WS04 |
SPRING WASHER
8.2X3.2X2t |
2 |
|
|
|
| 04 |
S20004 |
BOLT,FLANGE M10X30 |
1 |
|
|
|
| 05 |
GA501NT01 |
NUT, FLANGE M10 |
1 |
|
|
|
| 06 |
511925 |
PROTECTOR, FRONT (PLASTIC) |
1 |
|
|
|
| 07 |
511926 |
PROTECTOR, REAR(PLASTIC) |
1 |
|
|
|
| 08 |
511948 |
FRONT INTERNAL FENDER, LH |
1 |
|
|
|
| 09 |
511949 |
FRONT INTERNAL FENDER, RH |
1 |
|
|
|
| 10 |
511950 |
SEAT STEADY, FRONT |
1 |
|
|
|
| 11 |
511945 |
PIN, STEERING LOCK |
1 |
|
|
|
| 12 |
511946 |
SPRING, STEERING LOCK |
1 |
|
|
|
| 13 |
S25602 |
BOLT M6X16L |
8 |
|
|
|
| 14 |
GA554BS02 |
SPACER |
2 |
|
|
|
| 15 |
GA555SC05 |
BOLT, OUTLET M6X1.0X16L |
2 |
|
|
|
| 16 |
S07601 |
BOLT, FLANGE |
10 |
|
|
|
| 17 |
GA556WS06 |
WASHER, SPRING
10.2X3.7X2.5t |
4 |
|
|
|
| 18 |
S21008 |
BOLT M10X20 |
2 |
|
|
|
| 19 |
S20004 |
BOLT,FLANGE M10X30 |
2 |
|
|
|
| 20 |
511936 |
ENGINE FIXED |
1 |
|
|
|
| 21 |
S21809 |
BOLT M8X1.25X18L |
2 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
