| 202 |

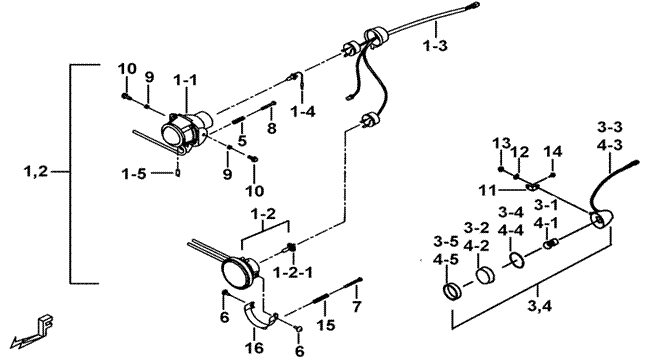

HEAD LAMP ASSY. |
|
FBE-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
511736 |
HEAD LAMP ASSY. LH. |
1 |
|
|
|
| 01-1 |
515004 |
MAIN BEAM |
1 |
|
|
|
| 01-2 |
515015 |
HEAD LAMP COMP., DIPPED |
1 |
|
|
|
| 01-2-1 |
514029 |
BULB 55W |
1 |
|
|
|
| 01-3 |
515043 |
WIRING ASSY, HEAD LAMP |
1 |
|
|
|
| 01-4 |
450058 |
BULB 55W |
1 |
|
|
|
| 01-5 |
514026 |
BULB 5W |
1 |
|
|
|
| 02 |
511737 |
HEAD LAMP COMP. RH. |
1 |
|
|
|
| 03 |
511718 |
TURN SIGNAL LAMP COMP, LH |
1 |
|
|
|
| 03-1 |
514030 |
BULB 10W |
1 |
|
|
|
| 03-2 |
514031 |
LENS, TURN SIGNAL , LH |
1 |
|
|
|
| 03-3 |
514033 |
WIRING SET, TURN SIGNAL , LH |
1 |
|
|
|
| 03-4 |
511728 |
GASKET, RUBBER |
1 |
|
|
|
| 03-5 |
511726 |
WATERPROOF BAND |
1 |
|
|
|
| 04 |
511719 |
TURN SIGNAL LAMP COMP, RH |
1 |
|
|
|
| 04-1 |
514030 |
BULB 10W |
1 |
|
|
|
| 04-2 |
514032 |
LENS, TURN SIGNAL , RH |
1 |
|
|
|
| 04-3 |
514034 |
WIRING SET, TURN SIGNAL , RH |
1 |
|
|
|
| 04-4 |
511728 |
GASKET, RUBBER |
1 |
|
|
|
| 04-5 |
511726 |
WATERPROOF BAND |
1 |
|
|
|
| 05 |
511725 |
SPRING |
2 |
|
|
|
| 06 |
511721 |
BOLT |
4 |
|
|
|
| 07 |
S46506 |
BOLT |
2 |
|
|
|
| 08 |
S46505 |
BOLT |
2 |
|
|
|
| 09 |
512431 |
SPACER |
4 |
|
|
|
| 10 |
S07601 |
BOLT, FLANGE |
4 |
|
|
|
| 11 |
511727 |
BRKT. |
2 |
|
|
|
| 12 |
W10501 |
SPRING WASHER |
2 |
|
|
|
| 13 |
GA552NT05 |
NUT, FLANGE M5 |
2 |
|
|
|
| 14 |
S57501 |
SCREW,OVAL HEAD, FLANGE M5X14 |
2 |
|
|
|
| 15 |
511724 |
SPRING |
2 |
|
|
|
| 16 |
511720 |
ADJUST SEAT |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
