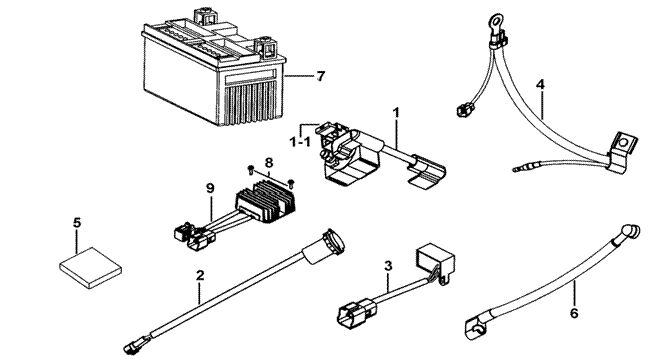

| 120 | BATTERY、HORN、RELAY,STARTING MOTOR、RECTIFIER | FBE-U | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 924409 | RELAY, STARTING MOTOR | 1 | ||||
| 01-1 | 924445 | FUSE 20A | 1 | ||||
| 02 | 924422 | POWER SOURCE | 2 | ||||
| 03 | 924447 | THERMOSWITCH COMP. | 1 | ||||
| 04 | 924441 | CABLE COMP. | 1 | ||||
| 05 | GF514TH02 | CUSHION | 5 | ||||
| 06 | 924440 | STARTING TERMINAL CABLE COMP. | 1 | ||||
| 07 | 924423 | BATTERY 12V 18AH | 1 | ||||
| 08 | S70607 | SCREW, SOCKET HEAD M6X20 | 2 | ||||
| 09 | 925803 | RECTIFIER | 2 | ||||
