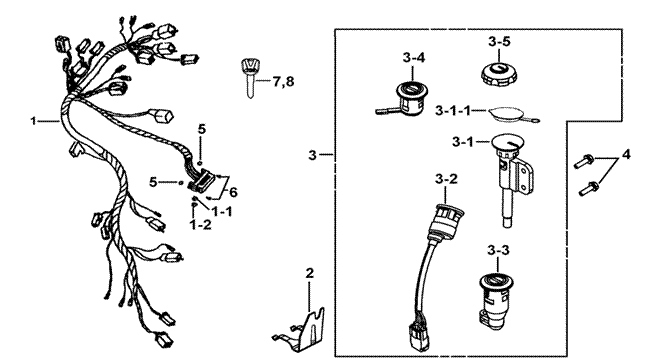

| 119 | WIRING HARNESS、LOCK ASSY. | FBE-U | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 924460 | WIRING HARNESS | 1 | ||||
| 01-1 | 924425 | FUSE, 10A | 6 | ||||
| 01-2 | 924426 | FUSE, 15A | 2 | ||||
| 02 | 401657 | REED | 1 | ||||
| 03 | 924449 | LOCK ASSY. | 1 | ||||
| 03-1 | 924457-S | LOCK SET, STEERING | 1 | ||||
| 03-1-1 | 924459 | LOCK SET, STEERING CAP | 1 | ||||
| 03-2 | 924424-S | LOCK SET, IG SW. | 1 | ||||
| 03-3 | 440744-S | LOCK SET, SEAT | 1 | ||||
| 03-4 | 440992-S | LOCK | 2 | ||||
| 03-5 | 924433-S | LOCK SET, FUEL CAP | 1 | ||||
| 03A | 924463 | LOCK ASSY. | 1 | FOR 425C | |||
| 04 | S96601 | SCREW, SPECIAL | 2 | ||||
| 05 | W99010 | WASHER ∮10.5X∮22X3.5t | 2 | ||||
| 06 | S70607 | SCREW, SOCKET HEAD M6X20 | 2 | ||||
| 07 | 923423 | BLANK KEY | 1 | ||||
| 08 | 923424 | BLANK KEY | 1 | ||||
