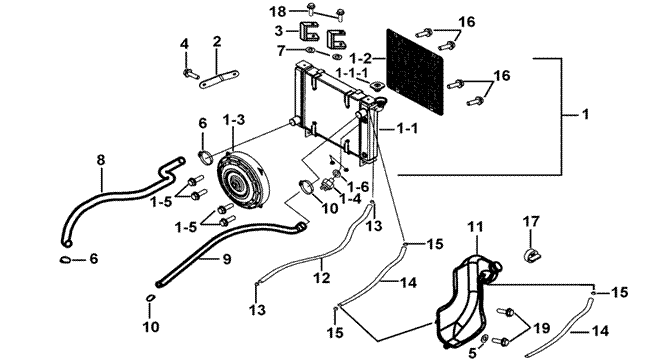

| 118 | RADIATOR ASSY.、COOLING FAN | FBE-U | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 924619A | RADIATOR ASSY. | 1 | ||||
| 01-1 | 924619 | RADIATOR COMP. | 1 | ||||
| 01-1-1 | 924798 | CAP, RADIATOR ASSY. | 1 | ||||
| 01-2 | 924670 | PROTECTOR, RADIATOR | 1 | ||||
| 01-3 | 924155 | COOLING FAN ASSY. | 1 | ||||
| 01-4 | 924159 | SWITCH, COOLING FAN | 1 | ||||
| 01-5 | S20603 | BOLT, FLANGE M6X12 | 4 | ||||
| 01-6 | W02001 | WASHER | 1 | ||||
| 02 | 924638 | BRKT, RADIATOR | 1 | ||||
| 03 | 924741 | BRACKET | 2 | ||||
| 04 | S20814 | BOLT, FLANGE | 1 | ||||
| 05 | W99806 | WASHER 8.5X16X2 | 1 | ||||
| 06 | 422039 | CLAMP. ∮38 | 4 | ||||
| 07 | 402129 | WASHER, RUBBER | 4 | ||||
| 08 | 924355 | HOSE, OUTLET | 1 | ||||
| 09 | 924354 | HOSE, INLET | 1 | ||||
| 10 | 422037 | CLIPφ32 | 2 | ||||
| 11 | 924641 | RESERVOIR ASSY. | 1 | ||||
| 12 | 924681 | HOSE, RECIRCULATION | 1 | ||||
| 13 | R40801 | CLIP | 2 | ||||
| 14 | 924674 | HOSE | 2 | ||||
| 15 | R40201 | CLIP | 3 | ||||
| 16 | S21605 | BOLT, FLANGE M6X10 | 4 | ||||
| 17 | 924642 | RESERVOIR CAP | 1 | ||||
| 18 | S21008 | BOLT M10X20 | 2 | ||||
| 19 | S20603 | BOLT, FLANGE M6X12 | 2 | ||||
