| 117 |

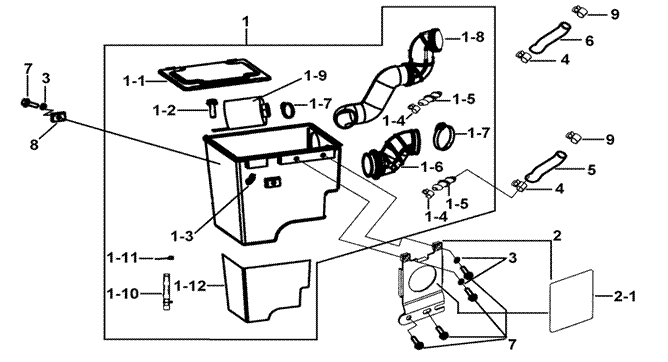

AIR CLEANER ASSY. |
|
FBE-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
924119A |
AIR CLEANER ASSY. |
1 |
|
|
|
| 01-1 |
924607 |
COVER, AIR CLEANER |
1 |
|
|
|
| 01-10 |
924124 |
TUBE |
1 |
|
|
|
| 01-11 |
R36401 |
CLIP |
1 |
|
|
|
| 01-12 |
924740 |
HEAT INSULATION |
1 |
|
|
|
| 01-2 |
GA557SC12 |
SCREW, PAN HEAD M5X10 |
1 |
|
|
|
| 01-3 |
923278 |
"S" CLIP |
4 |
|
|
|
| 01-4 |
R40101 |
HOSE CLAMP BATTEN |
2 |
|
|
|
| 01-5 |
924733 |
TWO THROUGH -HOLE |
2 |
|
|
|
| 01-6 |
924123 |
CARBURETOR AIR FEEDER |
1 |
|
|
|
| 01-7 |
R66802 |
CLIP |
2 |
|
|
|
| 01-8 |
924690 |
TUBE, INLET |
1 |
|
|
|
| 01-9 |
924120 |
FILTER |
1 |
|
|
|
| 02 |
924691A |
BRACKET, AIR CLEANER |
1 |
|
|
|
| 02-1 |
924743 |
HEAT INSULATION |
1 |
|
|
|
| 03 |
W99605 |
WASHER |
3 |
|
|
|
| 04 |
R40201 |
CLIP |
2 |
|
|
|
| 05 |
924135 |
TWO INTAKE DUCTS RH. |
1 |
|
|
|
| 06 |
924692 |
TWO INTAKE DUCTS LH. |
1 |
|
|
|
| 07 |
S20603 |
BOLT, FLANGE M6X12 |
5 |
|
|
|
| 08 |
924684 |
NUT, SPECIAL |
1 |
|
|
|
| 09 |
R40501 |
CLIP |
2 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
