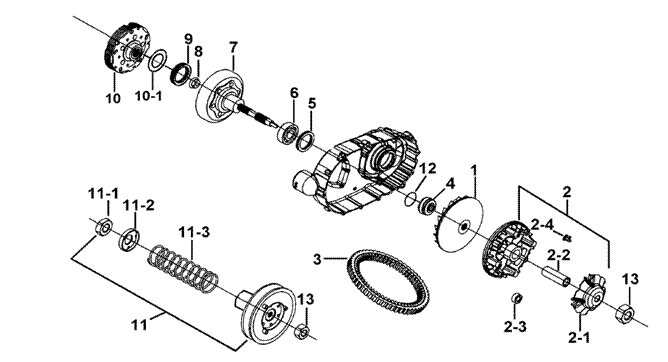

C.V.T. |
|
|
FBE-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
924501 |
FACE, FIXED DRIVE |
1 |
|
|
|
| 02 |
924505 |
SHEAVE, MOVABLE DRIVE ASSY. |
1 |
|
|
|
| 02-1 |
924512 |
PLATE, MOVABLE DRIVE FACE |
1 |
|
|
|
| 02-2 |
924518 |
SPACER, MOVABLE DRIVE SHEAVE |
1 |
|
|
|
| 02-3 |
492074 |
ROLLER, MOVABLE DRIVE SHEAVE |
8 |
|
|
|
| 02-4 |
490687 |
SLIDING PAD |
4 |
|
|
|
| 03 |
924161 |
V/S BELT |
1 |
|
|
|
| 04 |
924521 |
SPACER |
1 |
|
|
|
| 05 |
924162 |
OIL SEAL |
1 |
|
|
|
| 06 |
924163 |
BEARING, RIGHT |
1 |
|
|
|
| 07 |
924525 |
CLUTCH HOUSING ASSY. |
1 |
|
|
|
| 08 |
924553 |
NUT |
1 |
|
|
|
| 09 |
924545 |
UNIDIRECTIONAL CLUTCH |
1 |
|
|
|
| 10 |
924530 |
CLUTCH ASSY. |
1 |
|
|
|
| 10-1 |
492184 |
WASHER |
1 |
|
|
|
| 11 |
924560 |
PULLEY, DRIVEN ASSY. |
1 |
|
|
|
| 11-1 |
PG433232 |
NUT, DRIVEN PULLEY |
1 |
|
|
|
| 11-2 |
924581 |
HOLDER, MOVABLE DRIVEN SHEAVE |
1 |
|
|
|
| 11-3 |
492106 |
SPRING, MOVABLE DRIVEN SHEAVE |
1 |
|
|
|
| 12 |
924520 |
O-RING |
1 |
|
|
|
| 13 |
924523 |
NUT |
2 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
