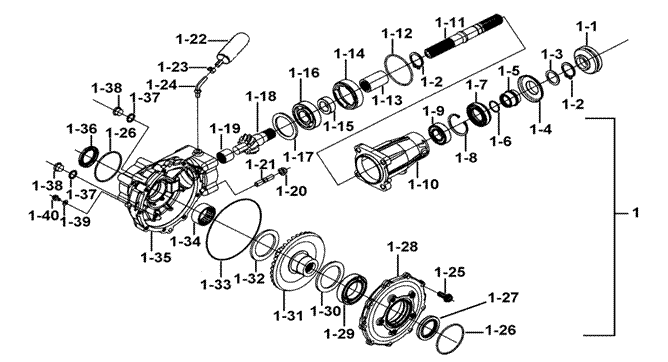

114 REAR DIFFERENTIAL ASSY.   FBE-U




















ITEM NO. PART NO. DESCRIPTION Q'TY AMEND NOTE
01 924738 REAR DIFFERENTIAL ASSY. 1
01-1 924249 DUST GUARD COVER 1
01-10 924263 HOUSING, RR FINAL DRIVE 1
01-11 924250 SHAFT, REAR FINAL DRIVE 1
01-12 924273 O-RING φ3.175.4 1
01-13 924252 JOINT, REAR FINAL DRIVE 1
01-14 924254 RING SNAP 1
01-15 924255 RING SNAP 1
01-16 924267 BEARING φ28Xφ68X18 1
01-17 W99622 SHIM φ63Xφ68X0.5t 1
01-17A W99625 SHIM φ63xφ68x0.3t 1
01-17B W99623 SHIM φ63xφ68x0.1t 1
01-18 924253 GEAR(UMBRELLA) 1
01-19 924269 BEARING φ20xφ28x23 1
01-2 R00206 C CLIP, REVERSE GEAR 2
01-20 N10001 NUT 4
01-21 S95003 STUD 4
01-22 924769 CASE, BREATHER 1
01-23 R40002 CLIP 1
01-24 924261 EXHAUST PIPE, BREATHE 1
01-25 S21813 SCREW 9
01-26 924378 O-RING φ3.1xφ71.4 2
01-27 924275 OIL SEAL φ42xφ62x9 1
01-28 924262 CASE, REAR FINAL DRIVEN RH 1
01-29 924268 BEARING φ45xφ75x16 1
01-3 W99527 WASHER φ25Xφ38X1t 1
01-30 W99531 SHIM φ45.5Xφ54X0.5t 1
01-30A W99528 SHIM φ45.5Xφ54X0.3t 1
01-30B W99529 SHIM φ45.5Xφ54X0.1t 1
01-30C W99530 SHIM φ45.5Xφ54X0.05t 1
01-31 924256 GEAR, FINAL DRIVEN BEVEL 1
01-32 W99427 SHIM φ40Xφ50X0.5T 1
01-32A W99424 SHIM φ40Xφ50X0.3T 1
01-32B W99425 SHIM φ40Xφ50X0.1T 1
01-32C W99426 SHIM φ40Xφ50X0.05T 1
01-33 924271 "O" RING φ2.3Xφ158.3 1
01-34 924270 BEARING φ40Xφ50X20 1
01-35 924260 CASE, REAR FINAL GEAR 1
01-36 924274 OIL SEAL φ38Xφ54X6 1
01-37 W99620 WASHER, TDC φ16.2Xφ22.5X2t 2
01-38 924339 SCREW 2
01-39 W99621 WASHER φ6.5Xφ13.2X1.3t 1
01-4 924605 DUST GUARD COVER 1
01-40 S21605 BOLT, FLANGE M6X10 1
01-5 924265 OIL SEAL RING 1
01-6 924272 O-RING φ2.9xφ24.7 1
01-7 924251 OIL SEAL φ35xφ59x16.5 1
01-8 R01801 CILP 1
01-9 924266 BEARING φ25xφ52x15 1
