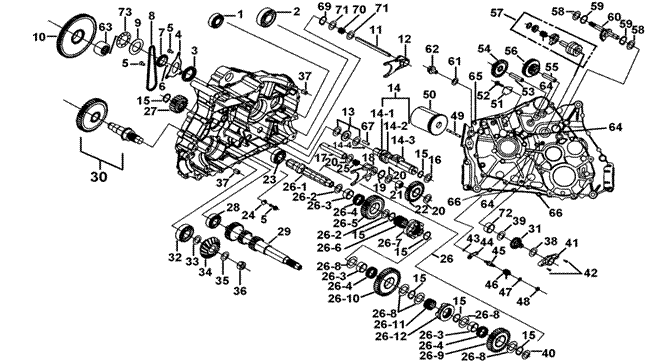

L CRANK CASE |
|
FBE-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
924114 |
BEARING 20X47X14 |
1 |
|
|
|
| 02 |
924067 |
BEARING φ35Xφ72X17 |
1 |
|
|
|
| 03 |
924068 |
OIL SEAL φ34Xφ52X6 |
1 |
|
|
|
| 04 |
924069 |
RETAINER, CRANK CASE LH |
1 |
|
|
|
| 05 |
S46601 |
SCREW |
5 |
|
|
|
| 06 |
P30303 |
PIN, DOWEL |
1 |
|
|
|
| 07 |
924360 |
CHAIN WHEEL, WATER PUMP
(22T) |
1 |
|
|
|
| 08 |
924351 |
CHAIN, WATER PUMP |
1 |
|
|
|
| 09 |
924718 |
WASHER |
1 |
|
|
|
| 10 |
924107 |
GEAR, DRIVEN CLUTCH |
1 |
|
|
|
| 11 |
924235 |
FORK POLE |
1 |
|
|
|
| 12 |
924237 |
FORK |
1 |
|
|
|
| 13 |
924364 |
THRUST BEARING |
1 |
|
|
|
| 14 |
924701 |
CAM ASSY, GEAR SHAFT |
1 |
|
|
|
| 14-1 |
924702 |
FORK, GEAR SHAFT |
1 |
|
|
|
| 14-2 |
924703 |
CAM, GEAR SHAFT |
1 |
|
|
|
| 14-3 |
924704 |
CAM, GEAR SHAFT |
1 |
|
|
|
| 14-4 |
P30404 |
PIN, DOWEL |
1 |
|
|
|
| 15 |
R00206 |
“C” CLIP, REVERSE GEAR |
11 |
|
|
|
| 16 |
W99517 |
SHIM, REVERSE SHAFT |
1 |
|
|
|
| 17 |
924186 |
SHAFT, REVERSE GEAR |
1 |
|
|
|
| 18 |
924636 |
FORK, REVERSE GEAR |
1 |
|
|
|
| 19 |
R00501 |
“C” CLIP |
1 |
|
|
|
| 20 |
W99709 |
WASHERφ17X30X1t |
3 |
|
|
|
| 21 |
924643 |
BEARINGφ17xφ24x15 |
1 |
|
|
|
| 22 |
924187 |
IDLER GEAR(28T) |
1 |
|
|
|
| 23 |
924182 |
BEARINGΦ25x52x15 |
1 |
|
|
|
| 24 |
924185 |
CHUCK, BEARING |
2 |
|
|
|
| 25 |
924699 |
SPRING, FORK |
1 |
|
|
|
| 26 |
924301 |
GEAR COMP, TRANSMISSION |
1 |
|
|
|
| 26-1 |
924170 |
SHAFT, TRANSMISSION GEAR |
1 |
|
|
|
| 26-10 |
924171 |
GEAR, LOW SPEED(40T) |
1 |
|
|
|
| 26-11 |
924299 |
BUSHING |
1 |
|
|
|
| 26-12 |
924190 |
COLLAR, REVERSE GEAR |
1 |
|
|
|
| 26-2 |
W99212 |
WASHER, HIGH SPEED GEAR |
2 |
|
|
|
| 26-3 |
924172 |
BUSHING |
3 |
|
|
|
| 26-4 |
924178 |
BEARING |
3 |
|
|
|
| 26-5 |
924173 |
GEAR, HIGH SPEED (33T) |
1 |
|
|
|
| 26-6 |
924300 |
BUSHING |
7 |
|
|
|
| 26-7 |
924174 |
COLLAR |
1 |
|
|
|
| 26-8 |
924177 |
WASHER |
5 |
|
|
|
| 26-9 |
924189 |
REVERSE GEAR(32T) |
1 |
|
|
|
| 27 |
924175 |
GEAR(19T) |
1 |
|
|
|
| 28 |
924180 |
BEARING Φ20x47x14 |
1 |
|
|
|
| 29 |
924167 |
SHAFT, TRANSMISSION |
1 |
|
|
|
| 30 |
924169 |
OUTPUT COUNTERSHAFT ASSY. |
1 |
|
|
|
| 31 |
924361 |
CHAIN WHEEL WATER PNMP. |
1 |
|
|
|
| 32 |
924066 |
BEARING
φ35Xφ72X17 |
1 |
|
|
|
| 33 |
W99413 |
SHIM 24X48X1T |
1 |
|
|
|
| 33A |
W99414 |
SHIM 24X48X0.5T |
1 |
|
|
|
| 33B |
W99415 |
SHIM 24X48X0.3T |
1 |
|
|
|
| 33C |
W99417 |
SHIM 24X48X0.05T |
1 |
|
|
|
| 34 |
924203 |
GEAR, SEC DRIVE BEVEL(17T) |
1 |
|
|
|
| 35 |
W99304 |
SHIM |
1 |
|
|
|
| 36 |
N33803 |
NUT, HEX HEAD |
1 |
|
|
|
| 37 |
P40301 |
PIN, DOWEL |
2 |
|
|
|
| 38 |
W99412 |
GASKET 14X32X1 |
1 |
|
|
|
| 39 |
W99430 |
WASHER 12.3x22x1t |
1 |
|
|
|
| 40 |
W99012 |
WASHER |
1 |
|
|
|
| 41 |
924393 |
RETAINER, WATER PUMP |
1 |
|
|
|
| 42 |
S70602 |
SCREW, HEX. SCCKET M6X1.0X25L |
2 |
|
|
|
| 43 |
W99616 |
GASKET |
1 |
|
|
|
| 44 |
924231 |
STOPPER, GEAR SHAFT CAM |
1 |
|
|
|
| 45 |
924233 |
SET SCREW ,GEAR CAM
STOP DOG |
1 |
|
|
|
| 46 |
924232 |
SPRING |
1 |
|
|
|
| 47 |
W99617 |
WASHER, SPRING
ABATEMENT |
1 |
|
|
|
| 48 |
N10601 |
NUT, FLANGE 6mm |
1 |
|
|
|
| 49 |
924374 |
STUD, OIL FILTER |
1 |
|
|
|
| 50 |
924153 |
ENGINE OIL FILTER |
1 |
|
|
|
| 51 |
924048 |
PLATE, OIL GUIDE |
1 |
|
|
|
| 52 |
S24604 |
BOLT,FLANGE M6X12 |
1 |
|
|
|
| 53 |
924112 |
PIN (NO.2 STARTING IDLER) |
1 |
|
|
|
| 54 |
924110 |
GEAR |
1 |
|
|
|
| 55 |
924111 |
PIN (NO.1 STARTING IDLER) |
1 |
|
|
|
| 56 |
924109 |
GEAR, STARTING IDLER |
1 |
|
|
|
| 57 |
924630 |
SHIFT CAMSHAFT COMP |
1 |
|
|
|
| 58 |
W99218 |
WASHER |
2 |
|
|
|
| 59 |
R00703 |
"C" RING |
2 |
|
|
|
| 60 |
924236 |
SECONDARY DIAL POLE |
1 |
|
|
|
| 61 |
W99303 |
WASHER, DRAIN PLUG |
1 |
|
|
|
| 62 |
S24401 |
SCREW M14X12 |
1 |
|
|
|
| 63 |
924792 |
BEARING 29X38X20 |
1 |
|
|
|
| 64 |
S24627 |
BOLT, FLANGEM6X74L |
3 |
|
|
|
| 65 |
S21812 |
BOLT, FLANGE M8X97.5L |
1 |
|
|
|
| 66 |
S24602 |
BOLT, FLANGE M6X50 |
3 |
|
|
|
| 67 |
924645 |
PIN, DOWEL |
1 |
|
|
|
| 69 |
924149 |
"C" RING |
1 |
|
|
|
| 70 |
924700 |
FORK SPRING |
1 |
|
|
|
| 71 |
W99015 |
WASHER |
2 |
|
|
|
| 72 |
924739 |
BUSHING |
1 |
|
|
|
| 73 |
924366 |
WASHER |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
