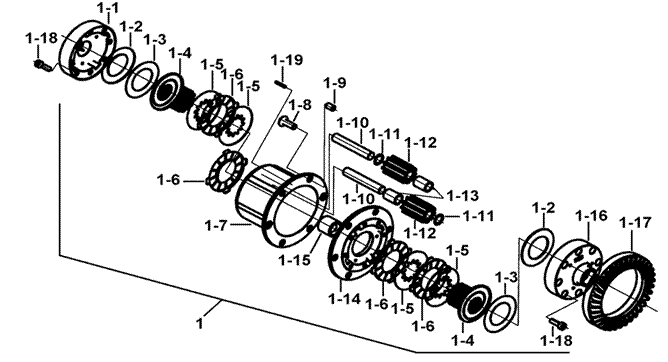

| 111 | SLIP LIMITED GEAR ASSY. | FBE-U | |||||
|
|
|||||||
| ITEM NO. | PART NO. | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 924617 | SLIP LIMITED GEAR ASSY. | 1 | ||||
| 01-01 | 924664 | PLANETARY GEAR COVER | 1 | ||||
| 01-02 | W31702 | GASKET, SPRING | 2 | ||||
| 01-03 | W99216 | GASKET | 2 | ||||
| 01-04 | 924656 | CROWN WHEEL | 2 | ||||
| 01-05 | 924654 | GASKET | 4 | ||||
| 01-06 | 924659 | GASKET | 4 | ||||
| 01-07 | 924662 | GEAR, PLANETARY | 1 | ||||
| 01-08 | S70812 | SCREW, SOCKET HEAD M8X1.25X24L | 6 | ||||
| 01-09 | P40101 | PIN, DOWEL φ8.5X11X6.8L | 2 | ||||
| 01-10 | 924653 | PINION PIN | 6 | ||||
| 01-11 | W99217 | GASKET φ12.1Xφ16.8φ0.5t | 6 | ||||
| 01-12 | 924657 | PLANETARY REAR | 6 | ||||
| 01-13 | P40201 | PIN, DOWEL | 6 | ||||
| 01-14 | 924661 | RIGHT CASE | 1 | ||||
| 01-15 | P40302 | PIN, DOWEL | 1 | ||||
| 01-16 | 924663 | RIGHT COVER | 1 | ||||
| 01-17 | 924396 | BEVEL RING GEAR | 1 | ||||
| 01-18 | S70619 | SCREW, SOCKET HEAD M6X1.0X18L | 16 | ||||
| 01-19 | P30601 | PIN, DOWEL φ6X15L | 3 | ||||
