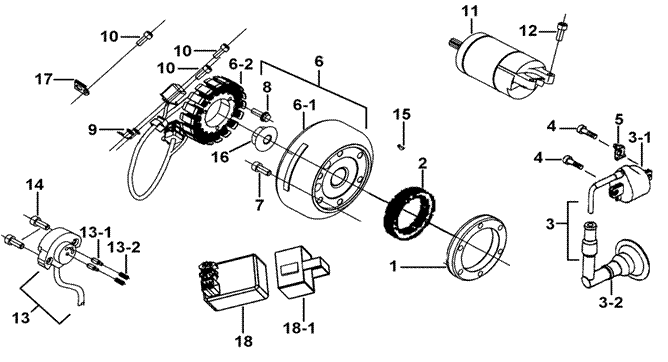

MOTOR STARTING、FLYWHEEL MAGNETO、C.D.I. |
|
FBE-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
924627 |
PLATE, THRUST |
1 |
|
|
|
| 02 |
924555 |
UNIDIRECTIONAL CLUTCH(STARTING) |
1 |
|
|
|
| 03 |
924413 |
IGNITION HIGH TENSION LINE ASSY. |
1 |
|
|
|
| 03-1 |
GE5139906 |
COIL SET, IGNITION |
1 |
|
|
|
| 03-2 |
924285 |
SPARK PLUG ATTACHMENT |
1 |
|
|
|
| 04 |
S70607 |
SCREW, SOCKET HEAD M6X20 |
2 |
|
|
|
| 05 |
440564 |
EARTH TERMINAL |
1 |
|
|
|
| 06 |
924278 |
FLYWHEEL MAGNETO ASSY |
1 |
|
|
|
| 06-1 |
924279 |
ROTOR ASSY |
1 |
|
|
|
| 06-2 |
924415 |
STATOR ASSY |
1 |
|
|
|
| 07 |
S70811 |
BOLT |
6 |
|
|
|
| 08 |
S24607 |
BOLT, FLANGE M6X32 |
3 |
|
|
|
| 09 |
924281 |
NO．1
CLAMP |
1 |
|
|
|
| 10 |
S13502 |
SCREW,CROSS RECESSED,PAN HEAD M5X10 |
3 |
|
|
|
| 11 |
924470C |
START MOTOR ASSY, REQUIRES 924835 |
1 |
|
|
|
| 11 |
924835 |
GEAR, STARTING IDLER |
1 |
|
|
|
| 12 |
S24607 |
BOLT, FLANGE M6X32 |
2 |
|
|
|
| 13 |
924414 |
GEAR SENSOR ASSY. |
1 |
|
|
|
| 13-1 |
924246 |
CONTACT, SWITCH, GEAR SELECT |
2 |
|
|
|
| 13-2 |
924247 |
SPRING , SWITCH, GEAR SELECT |
2 |
|
|
|
| 14 |
S79501 |
SCREW, SOCKET HEAD M5x16 |
2 |
|
|
|
| 15 |
924280 |
KEY |
1 |
|
|
|
| 16 |
N10803 |
NUT, FLANGE |
1 |
|
|
|
| 17 |
924282 |
NO.2 CLAMP |
1 |
|
|
|
| 18 |
924283 |
C.D.I |
1 |
|
|
|
| 18-1 |
924452 |
BUSH, RUBBER |
1 |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
