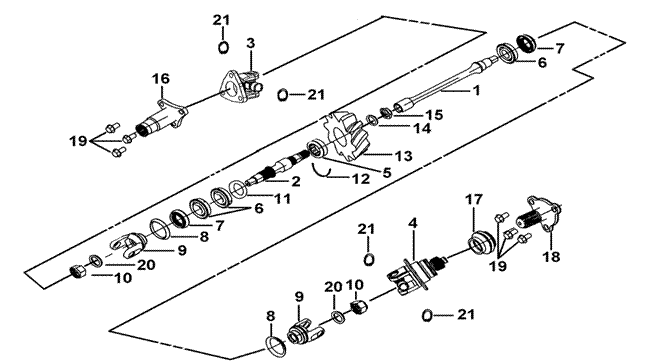

TRANSMISSION SYSTEM ASSY. |
|
FBE-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO. |
PART NO. |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
924218 |
SHAFT, SEC DRIVEN OUTPUT FRON |
1 |
|
|
|
| 02 |
924205 |
SHAFT,SEC DRIVEN OUTPUT REAR |
1 |
|
|
|
| 03 |
924626 |
UNIVERSAL JOINT ASSY. |
1 |
|
|
|
| 04 |
924625 |
UNIVERSAL JOINT ASSY. |
1 |
|
|
|
| 05 |
924214 |
BRG. SEC DRIVEN GEAR, MDL |
1 |
|
|
|
| 06 |
924228 |
BRG. SEC DRIVEN OUTPUT SFT FR |
3 |
|
|
|
| 07 |
924229 |
OIL SEAL, DRIVEN SFT, FR |
2 |
|
|
|
| 08 |
924207 |
PLATE, OUTPUT |
2 |
|
|
|
| 09 |
924206 |
YOKE, FR DRIVE OUTPUT |
2 |
|
|
|
| 10 |
N33601 |
NUT, HEX HEAD |
2 |
|
|
|
| 11 |
W99509 |
SHIM, SEC. DRIVEN SHAFT φ25Xφ34X0.05t |
1 |
|
|
|
| 11A |
W99510 |
SHIM, SEC. DRIVEN SHAFT φ25Xφ34X0.1t |
1 |
|
|
|
| 11B |
W99511 |
SHIM, SEC. DRIVEN SHAFT φ25Xφ34X0.3t |
1 |
|
|
|
| 11C |
W99512 |
SHIM, SEC. DRIVEN SHAFT φ25Xφ34X0.5t |
1 |
|
|
|
| 11D |
W99517 |
SHIM, REVERSE SHAFT |
1 |
|
|
|
| 12 |
924217 |
RING, SEC DRIVEN BRG, MDL |
1 |
|
|
|
| 13 |
924204 |
BEVEL GEAR, SEC DRIVE BEVEL (21T) |
1 |
|
|
|
| 14 |
W99305 |
WASHER |
1 |
|
|
|
| 15 |
N33802 |
NUT |
1 |
|
|
|
| 16 |
924209 |
SHAFT, PROPELLER REAR |
1 |
|
|
|
| 17 |
924224 |
BOOT, PROPELLER SHAFT |
1 |
|
|
|
| 18 |
924223 |
SHAFT, PROPELLER |
1 |
|
|
|
| 19 |
S21007 |
BOLT, MUF BODY SUPPORT
RH |
6 |
|
|
|
| 20 |
W99618 |
WASHER |
2 |
|
|
|
| 21 |
924212 |
“C” CLIP |
4 |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
